Fujitsu PRIMERGY RX100 S7 Upgrade And Maintenance Manual

354 Upgrade and Maintenance Manual RX100 S7
System board and components
15.2.1.5 Installing the riser module 2

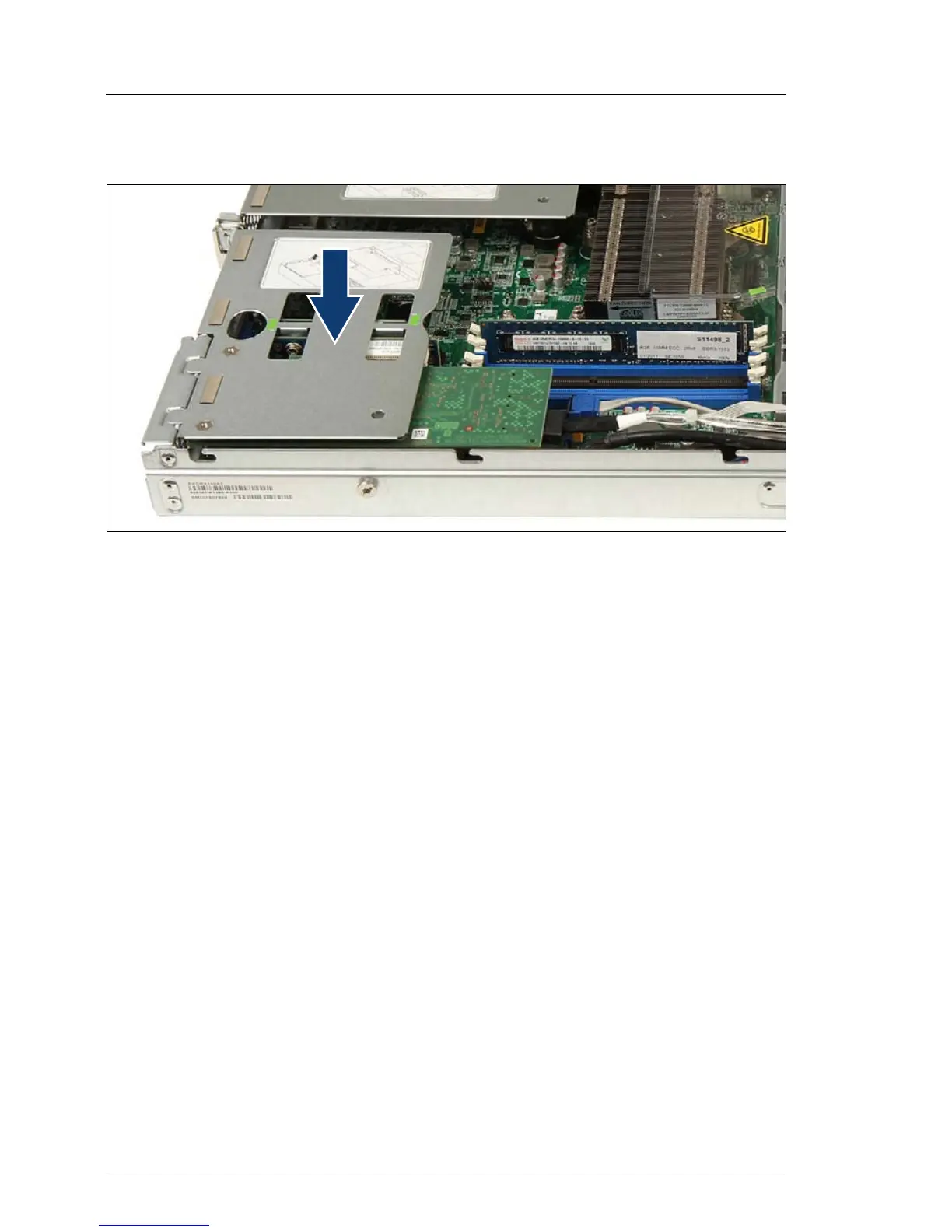

Figure 240: Installing the riser module 2
Ê Insert the two riser cards into the system board slots.
Ê If necessary, connect the cables to the other components.
15.2.1.6 Concluding steps
Ê Perform the following procedures:
1. "Closing the server" on page 66
2. "Installing the server in the rack" on page 68
3. "Enabling SVOM boot watchdog functionality" on page 89
4. "Switching on the server" on page 72
5. "Enabling BitLocker functionality" on page 94
6. "Closing the rack door" on page 73
15.2.1.7 Software configuration
The UFM delivery set includes the "Recovery Tool CD" to setup the ESXi
configuration. Proceed as follows:
Ê Switch on the server.

Fujitsu PRIMERGY RX100 S7 Specifications

General

Number of Processors	1
Memory Slots	4
Maximum Memory	32 GB
Form Factor	Rack
Memory Type	DDR3
Storage	SATA, SAS, SSD
Drive Bays	4 x 3.5" or 8 x 2.5"
RAID Support	Optional RAID controller cards
Network	Gigabit Ethernet
Network Controller	Intel I350
Power Supply	Redundant or Non-redundant
Operating System Support	Windows Server, Linux, VMware
