Fujitsu PRIMERGY RX100 S7 - Removing the Retaining Spring from the Dummy Cover; Removing the Dummy Cover

RX100 S7 Upgrade and Maintenance Manual 299
Optical disk drive
12.2.3 Removing the dummy cover

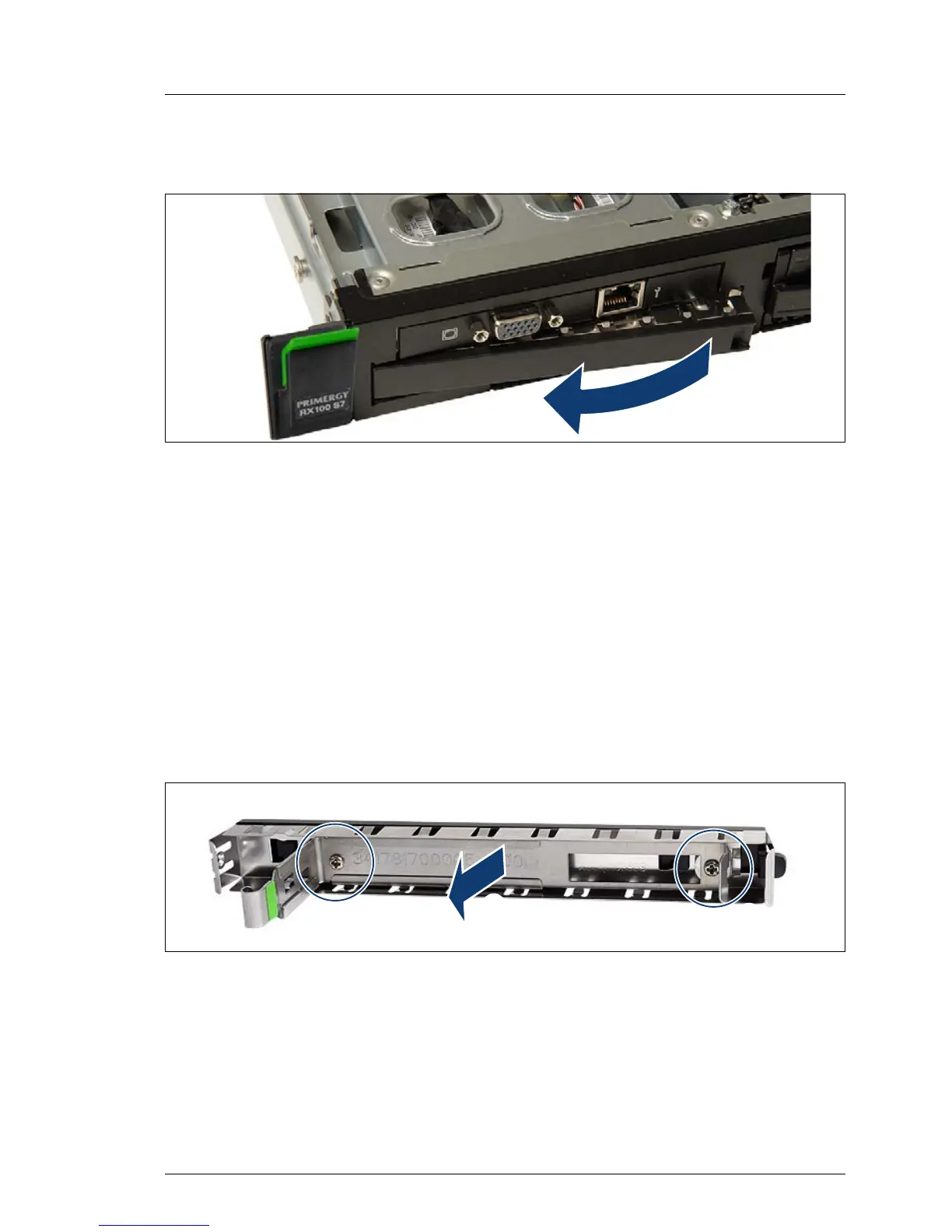

Figure 195: Removing the dummy cover (bottom side)
Ê Pull the dummy cover out of the bay.
V CAUTION!
Keep the dummy cover for future use. If you remove the accessible drive
again and do not replace it with a new one, the dummy cover must be
reinstalled to comply with EMC regulations and to satisfy cooling
requirements and fire protection measures.
12.2.4 Removing the retaining spring from the dummy
cover
Figure 196: Removing the retaining spring from the dummy cover
Ê Remove the two screws (1).
Ê Pull the retaining spring out of the dummy cover (2).
