320 Upgrade and Maintenance Manual
RX100 S7
Management and diagnostics modules

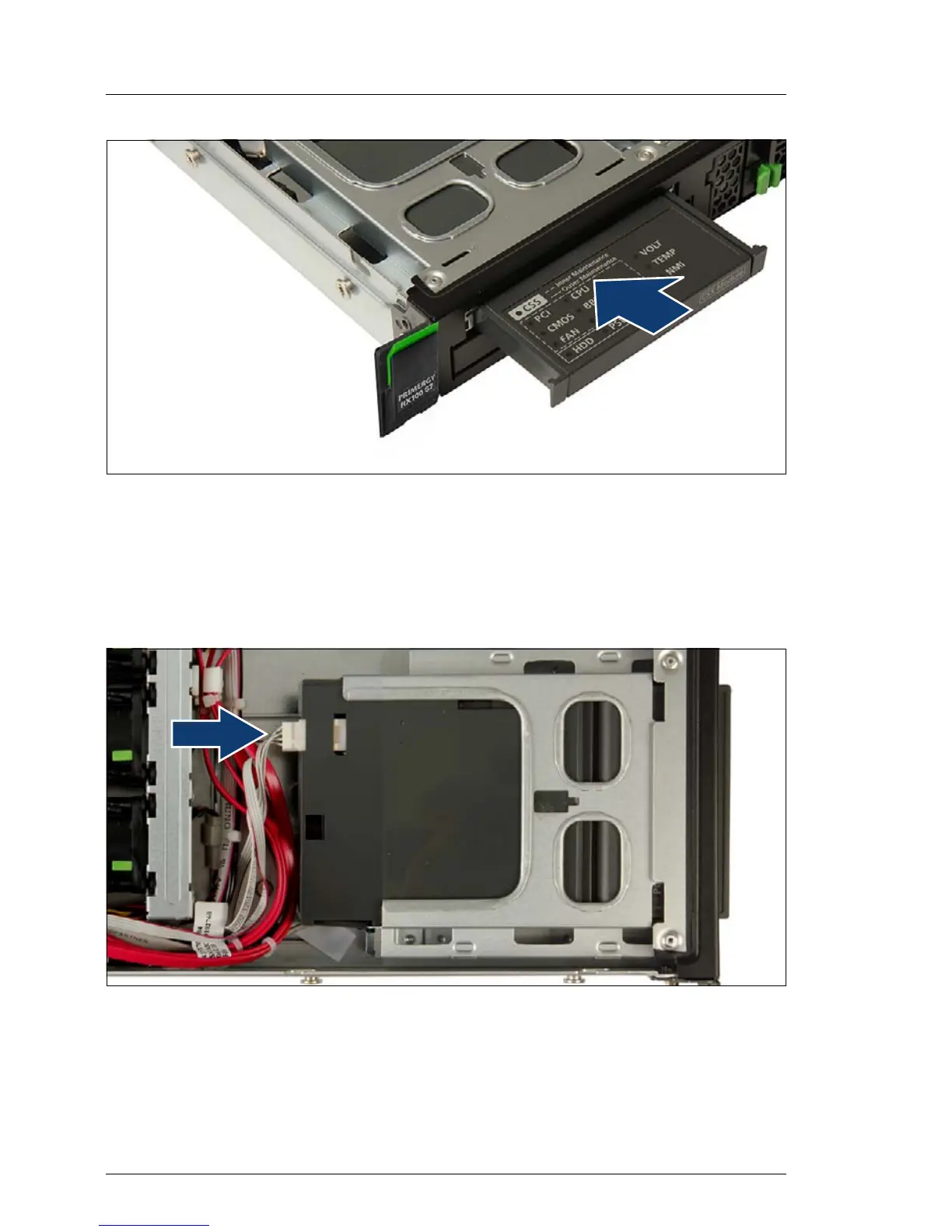

Figure 212: Installing the LSP
Ê Push the LSP into the bay from the front until the locking mechanism
engages.
14.2.1.5 Connecting the CSS cable
Figure 213: Connecting the CSS cable to the LSP
Ê Connect the CSS cable to the LSP.
