14.3.2.3 Removing the riser module 1

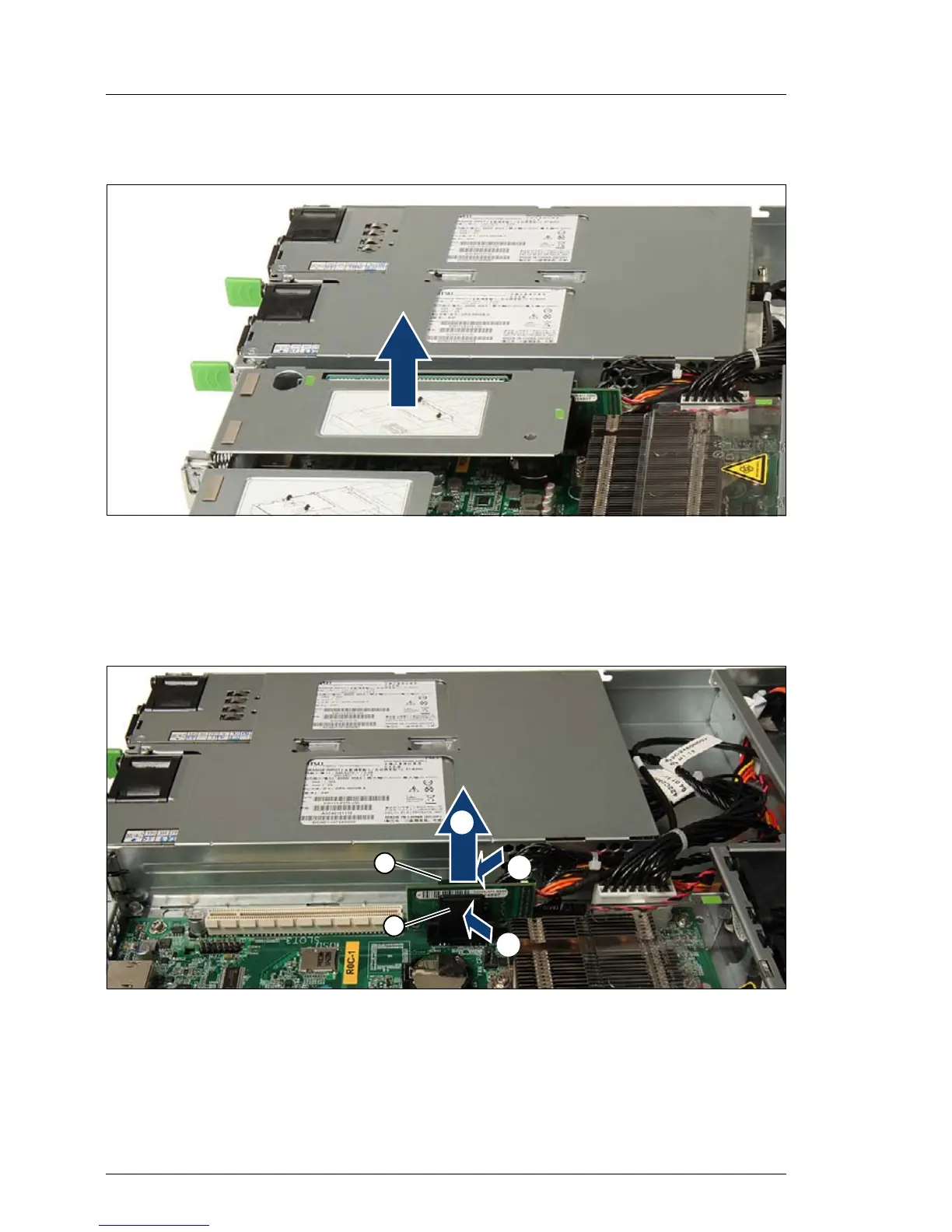

Figure 227: Removing the riser module 1
Ê Carefully pull out the riser module 1 upward.
14.3.2.4 Removing the front LAN card
Figure 228: Removing the front LAN card
Ê Press the two sides (A) of the holder together (1) until the locking
mechanism disengages.
Ê Carefully pull the holder with the front LAN card out of its slot (2).
