RX100 S7
Upgrade and Maintenance Manual 249
Expansion cards and backup units
9.5.2.5 Installing the FBU holder into the chassis
Ê Install the FBU holder into the chassis as described in section "Installing the
BBU with the BBU holder" on page 240.
9.5.2.6 Connecting the FBU adapter cable to the TFM

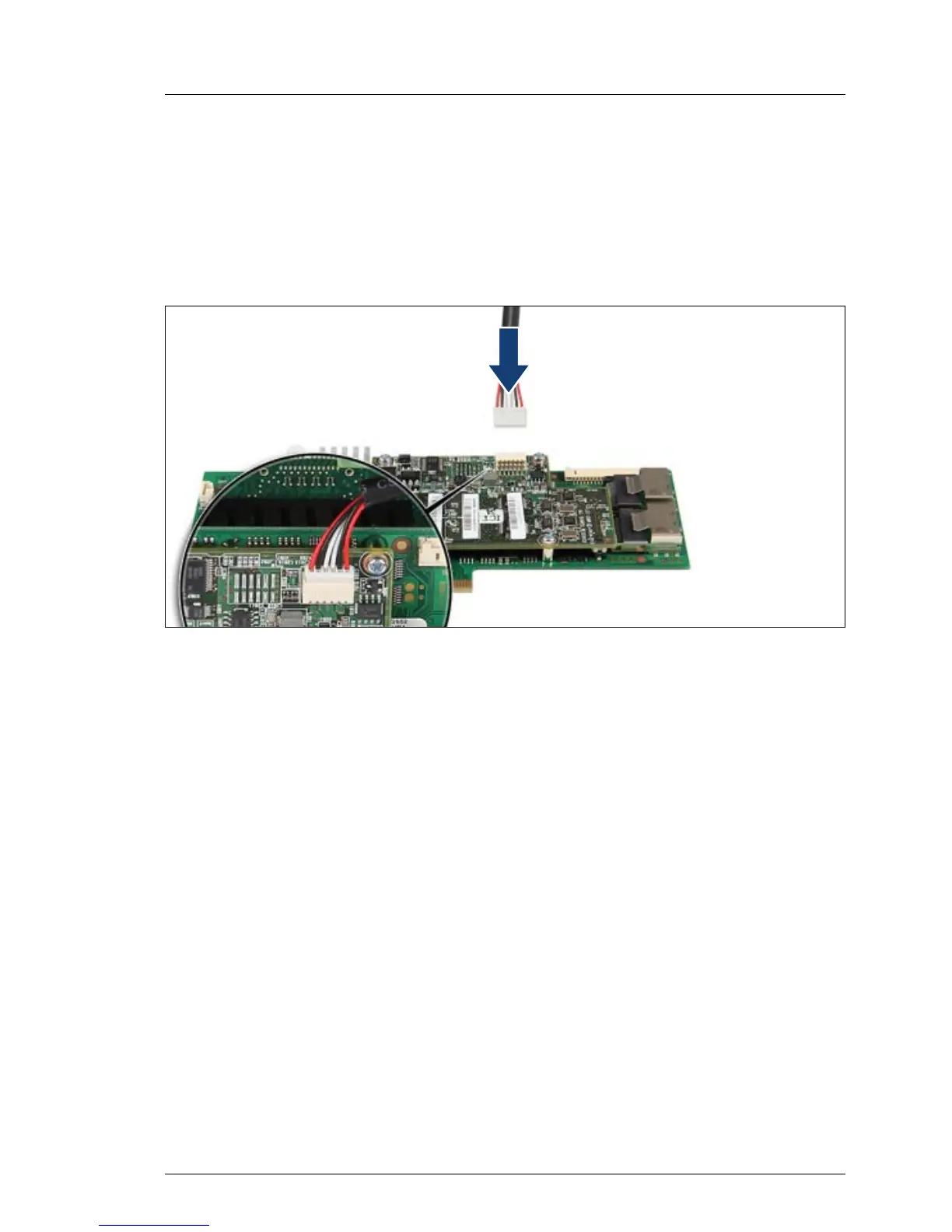

Figure 159: Connecting the FBU adapter cable to the TFM
Ê Connect the FBU adapter cable to the TFM.
Ê Install the RAID controller with the TFM as described in section "Installing
the expansion card" on page 205.
Ê Route the FBU adapter cable in the same way as the BBU cable (see
figure 152).
9.5.2.7 Concluding steps
Ê Perform the following procedures:
1. "Closing the server" on page 66
2. "Installing the server in the rack" on page 68
3. "Updating RAID controller firmware" on page 84
4. "Enabling SVOM boot watchdog functionality" on page 89
5. "Switching on the server" on page 72
6. "Closing the rack door" on page 73
