68 Upgrade and Maintenance Manual
RX100 S7
Basic hardware procedures
4.7 Installing the server in the rack
V CAUTION!
Follow the safety instructions in chapter "Important information" on
page 43.
I Refer to the rack cabinet manuals for more detailed information on other
support systems.
Inserting the server into the telescopic rails

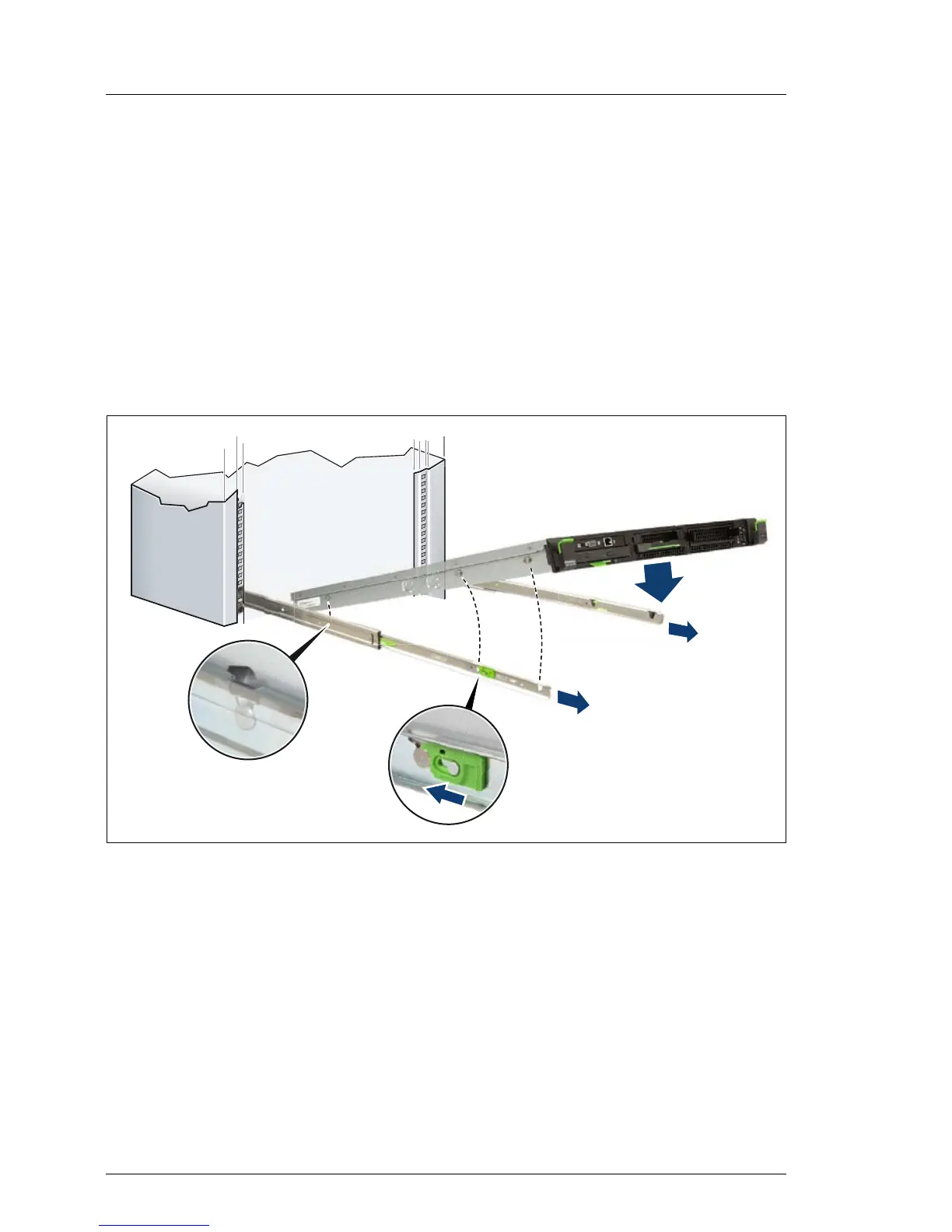

Figure 10: Inserting the server into the telescopic rails
Ê Fully extend the telescopic rails until they lock in place (1).
I The telescopic rails must click into place so that they can no longer
be moved.
Ê At a slight angle, lower the server onto the rear mounting point on the
telescopic rails (2).
Ê Fold down the server (3). Ensure that all six rack mounting bolts are properly
seated in the mounting points on the telescopic rails and that the locking
bars engage (4).
/
