Fujitsu PRIMERGY RX100 S7 - Removing the BBU from the BBU Holder

RX100 S7 Upgrade and Maintenance Manual 429
Cables
16.10.6 Removing the BBU from the BBU holder

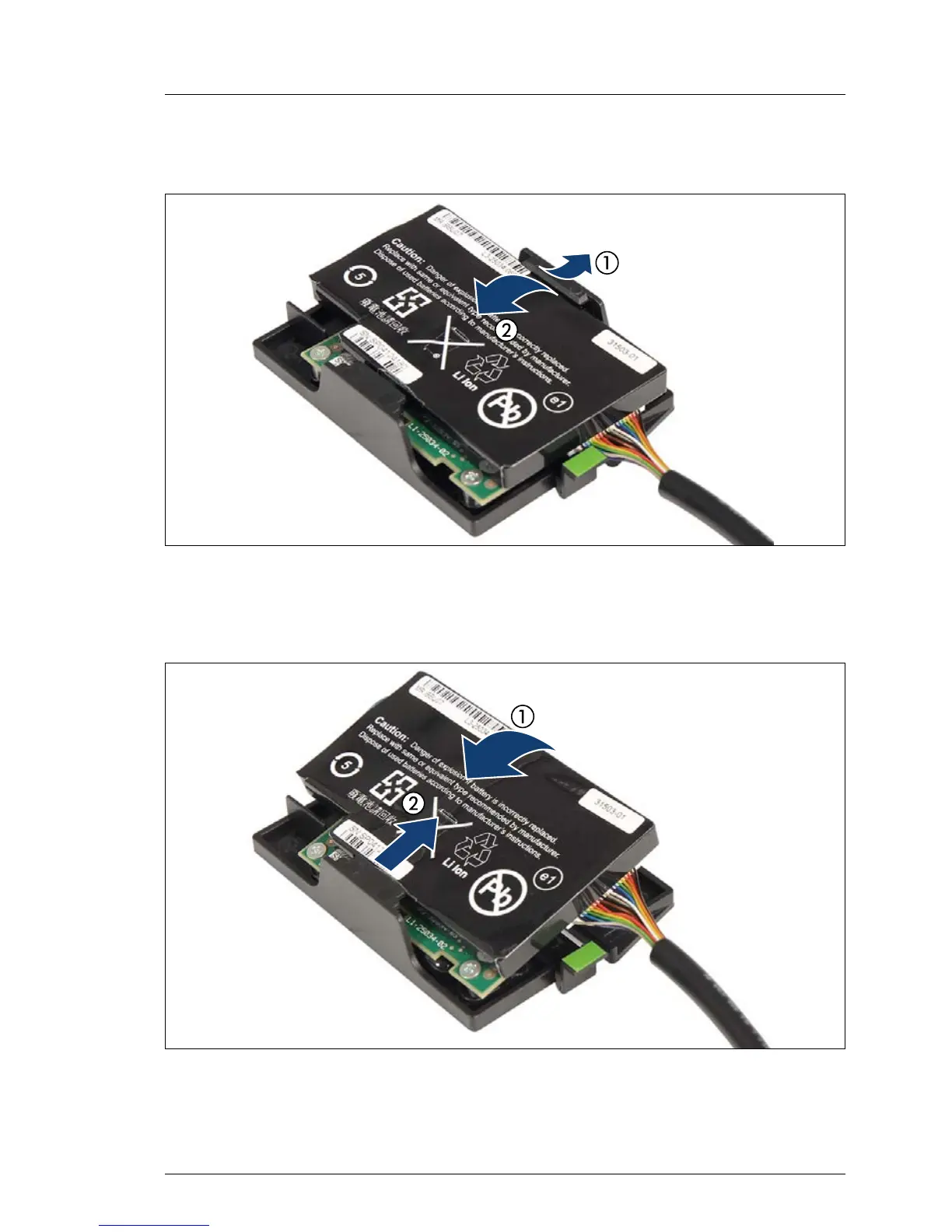

Figure 316: Removing the BBU from the BBU holder
Ê Press out on the right retaining bracket on the BBU holder (1) to disengange
the locking mechanism while pulling up on the BBU (2).
Figure 317: Removing the BBU from the BBU holder
Ê Fold up the BBU (1) and at a slight angle remove it from the BBU holder (2).
