Fujitsu PRIMERGY RX100 S7 - Removing the SGPIO Cable

RX100 S7 Upgrade and Maintenance Manual 387
Cables
16.1.4 Removing the SGPIO cable
Figure 262: Disconnecting the SGPIO cable from the SAS/SATA backplane
Ê Disconnect the SGPIO cable from the SAS/SATA backplane.

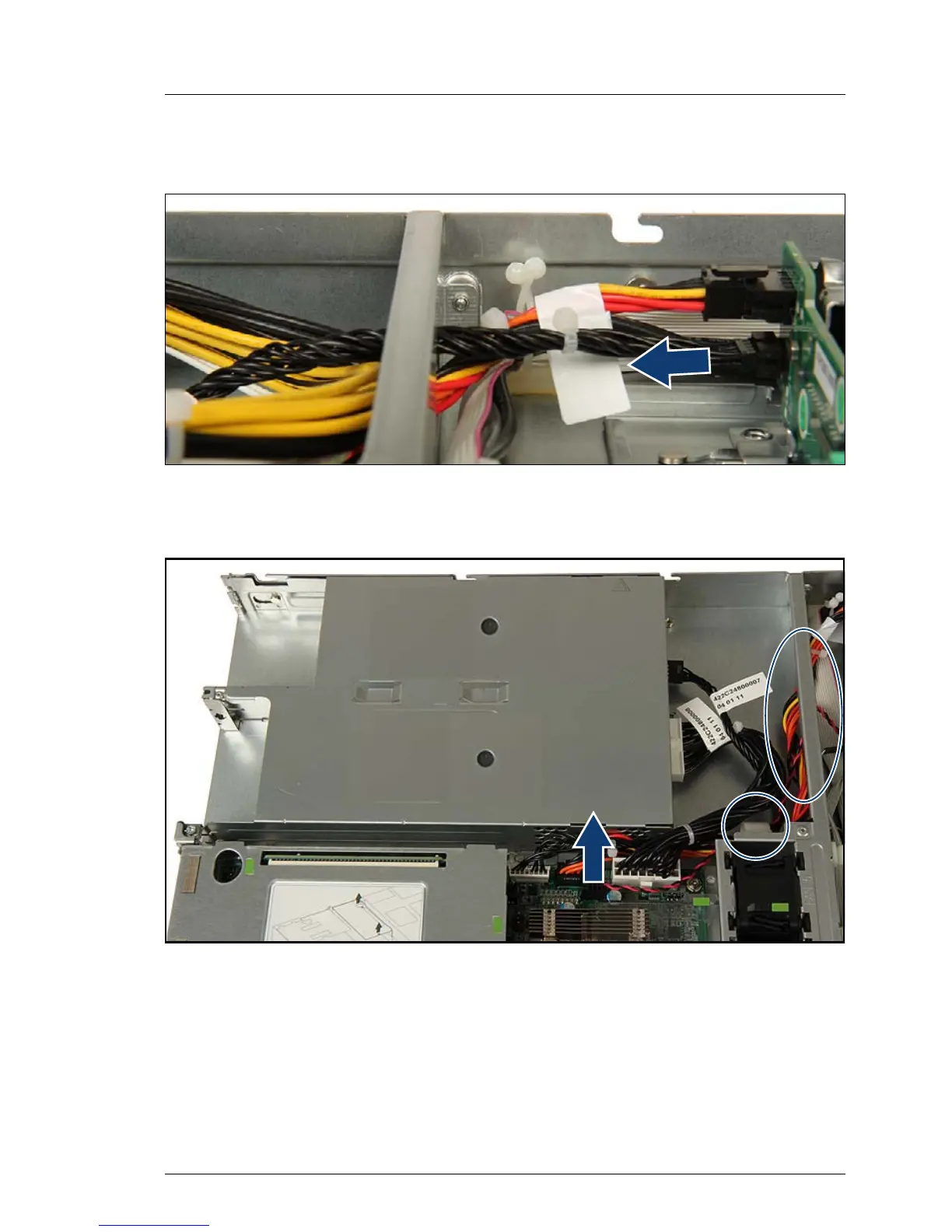

Figure 263: Disconnecting the SGPIO cable from the system board
Ê Disconnect the SGPIO cable from the system board connector "BP SGPIO".
Ê Remove the SGPIO cable from the cable clamp (see circle).
Ê Thread the cable through the recess (see circle) and remove the SGPIO
cable.
