RX100 S7
Upgrade and Maintenance Manual 201
Expansion cards and backup units
V CAUTION!
Keep the slot cover for future use. If the expansion card is removed and
not replaced with a new one, the slot cover must be reinstalled due to
cooling, to comply with applicable EMC regulations (regulations on
electromagnetic compatibility) and to protect against fire.
9.4.1.5 Installing the expansion card
Ê Please read the documentation supplied with the expansion card.

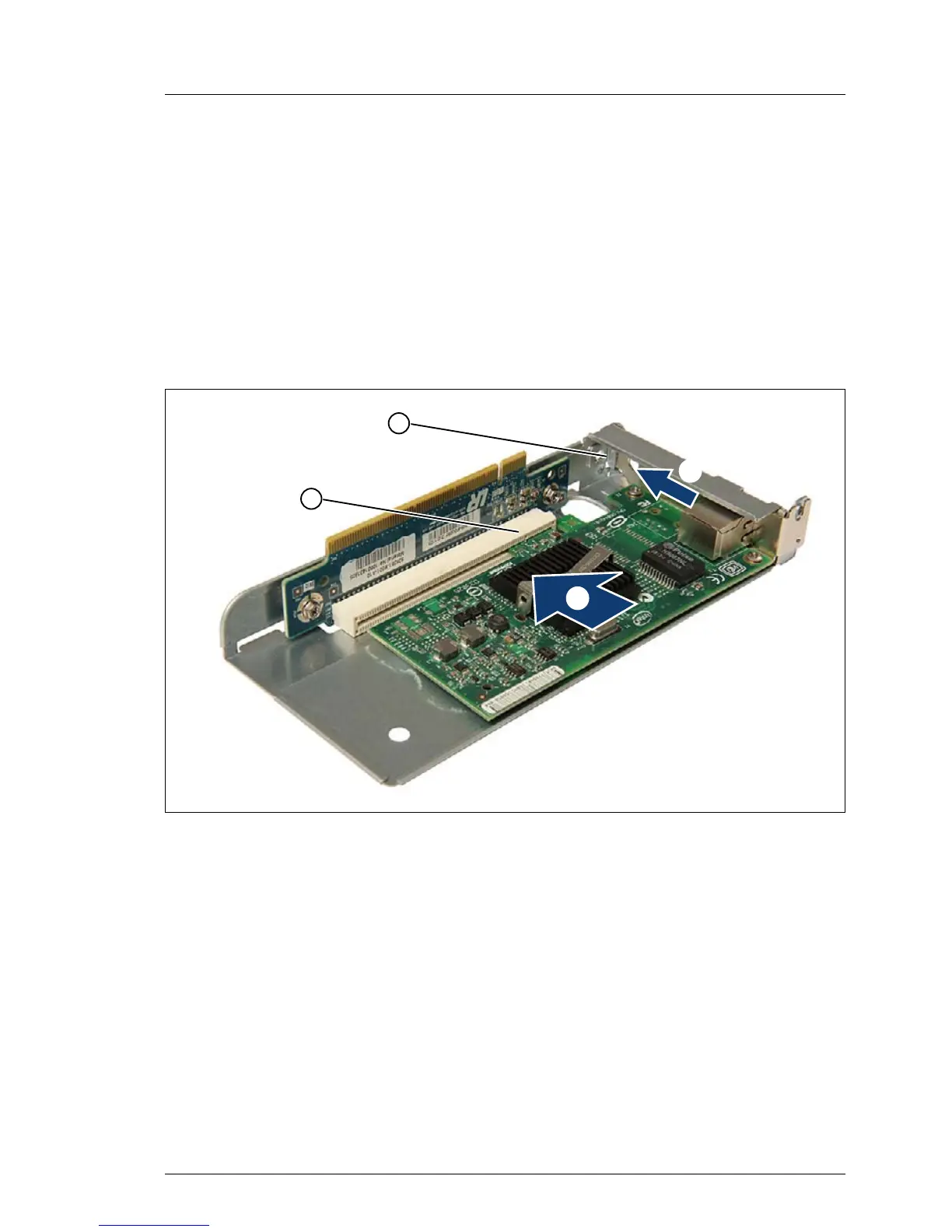

Figure 113: Installing an expansion card - slot 3
Ê Carefully press the expansion card into the riser card slot (A), until it clicks
into place (1).
Make sure that the lug on the slot cover (B) clicks into place in the
corresponding hole (2).
A
B
/
