RX100 S7 Upgrade and Maintenance Manual 63
Basic hardware procedures
4.4.3 Removing the server from the telescopic rails

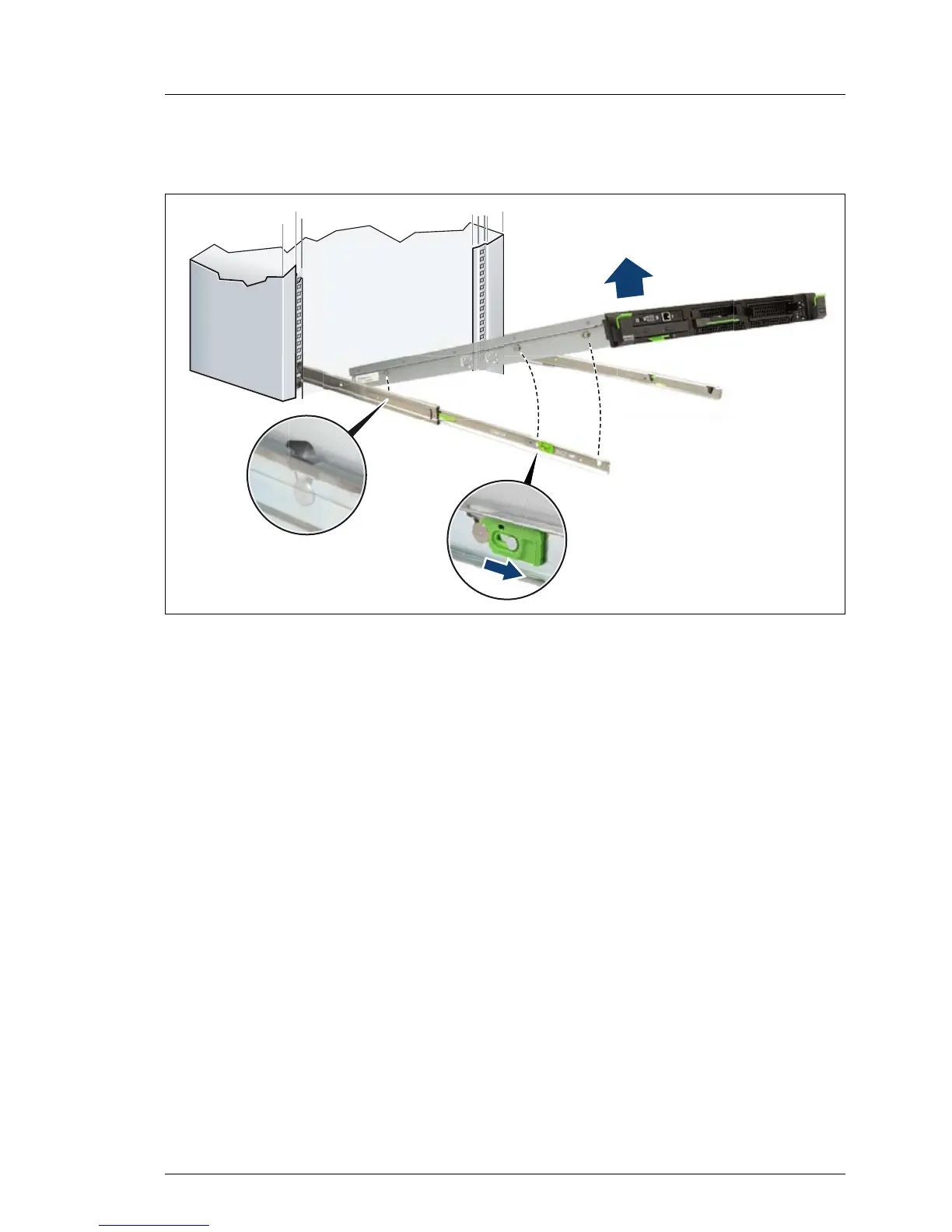

Figure 5: Removing the server from the telescopic rails
Ê Release the locking bars on both telescopic rails (1).
Ê Lift the server out of the telescopic rails (2) and place it on an even surface.
/
