Fujitsu PRIMERGY RX100 S7 - Installing the New Fan;Odd Power Cable

396 Upgrade and Maintenance Manual RX100 S7
Cables

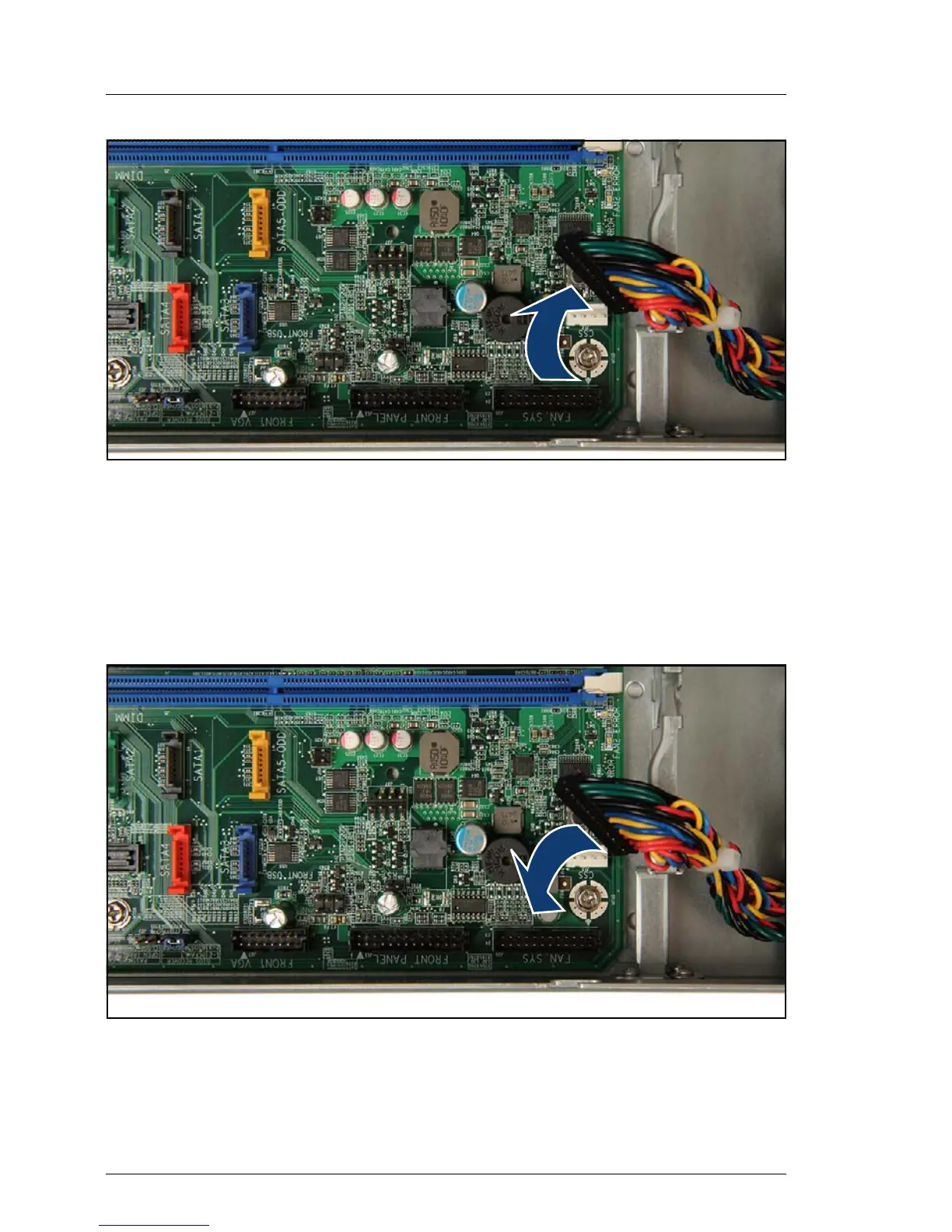

Figure 274: Disconnecting the fan/ODD power cable from the system board
Ê Disconnect the fan/ODD power cable from the system board.
Ê Remove the fan/ODD power cable.
16.3.4 Installing the new fan/ODD power cable
Figure 275: Connecting the fan/ODD power cable to the system board
Ê Connect the fan/ODD power cable to the connector "FAN SYS" on the
system board.
