9.5.1.6 Connecting the BBU cable to the RAID controller

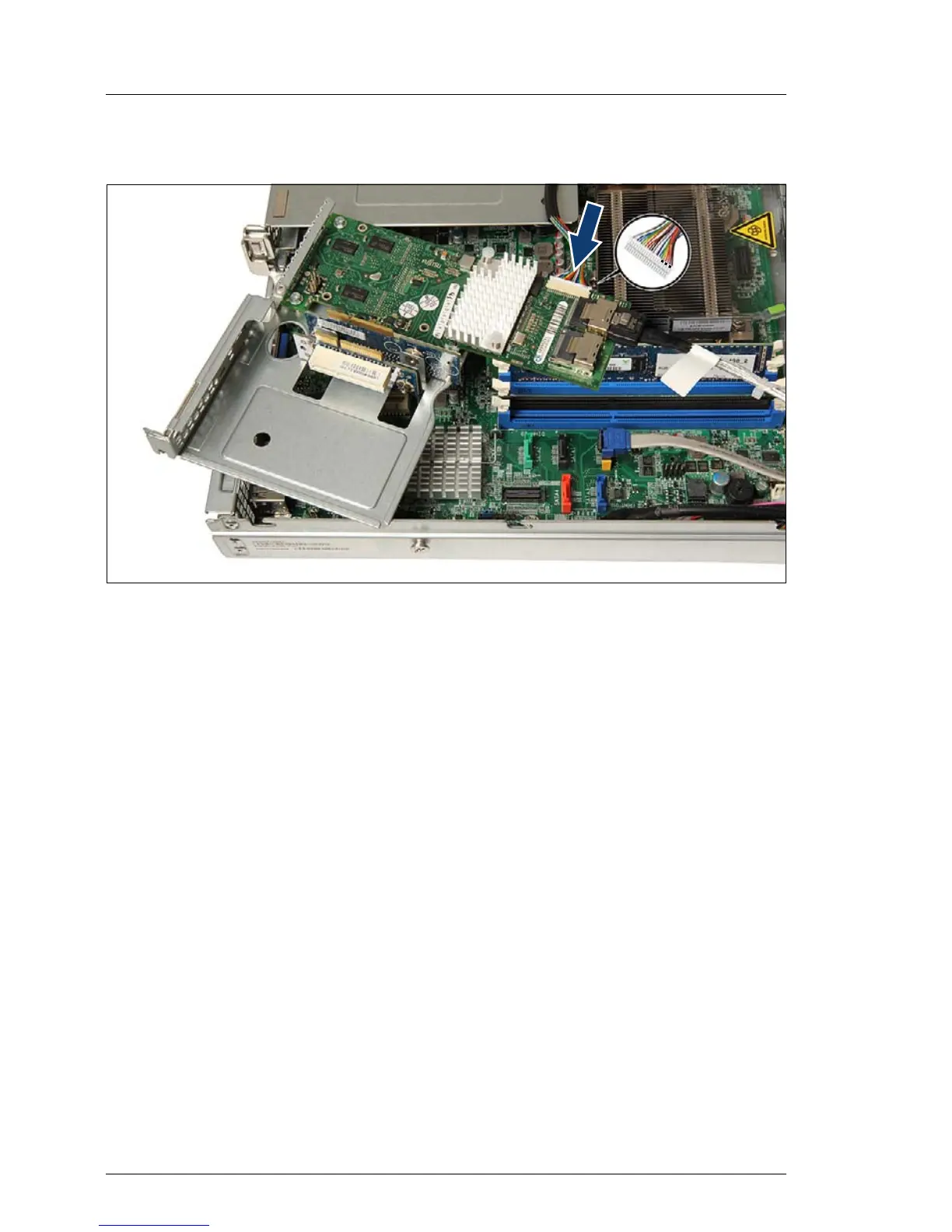

Figure 151: Connecting the BBU cable to the RAID controller
Ê Install a RAID controller as described in section "Installing the expansion
card" on page 205.
Ê Connect the BBU cable to the RAID controller.
V CAUTION!
Make sure that the connector side with the three dots is on the top.
Otherwise you risk short-circuits.
