RX100 S7
Upgrade and Maintenance Manual 161
Hard disk drives / solid state drives
7.2.2.3 Removing the 3.5-inch dummy module
Dummy modules protect free bays against environmental impact. Remove the
dummy module before installing an additional HDD module.

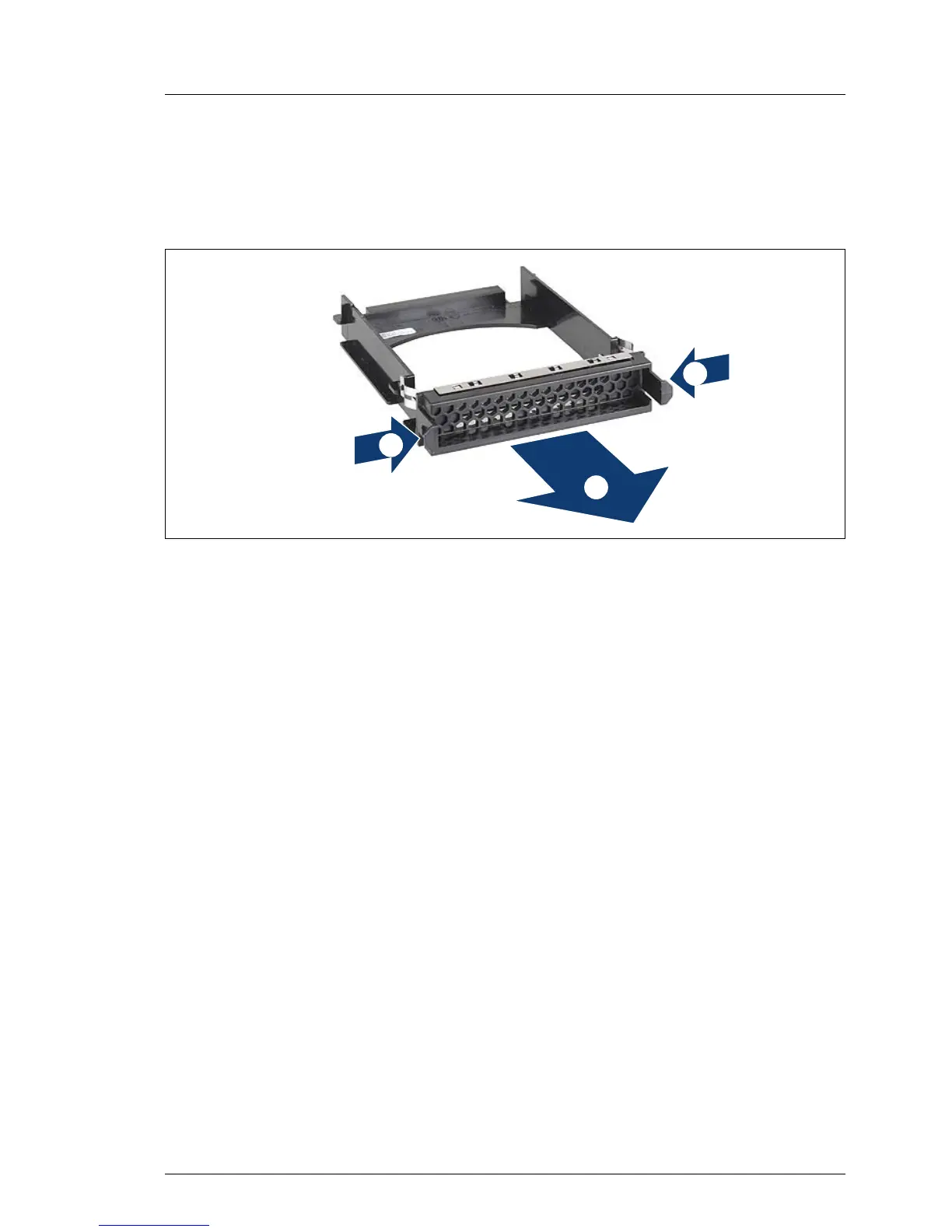

Figure 76: Removing the 3.5-inch dummy module
Ê Press both tabs on the dummy module together until the locking mechanism
disengages (1).
Ê Pull the dummy module out of the bay (2).
V CAUTION!
Store the dummy module in a safe place. If you have removed an HDD
module and do not install a new one in its place, put the dummy module
back in its place for cooling, to comply with EMC regulations (regulations
regarding electromagnetic compatibility), and for protection against fire.
Ensure that the dummy module engages correctly in the bay.
