Fujitsu PRIMERGY RX100 S7 - Installing an SFP+ Transceiver Module; Installing the Protective Optical Port Plug

198 Upgrade and Maintenance Manual RX100 S7
Expansion cards and backup units

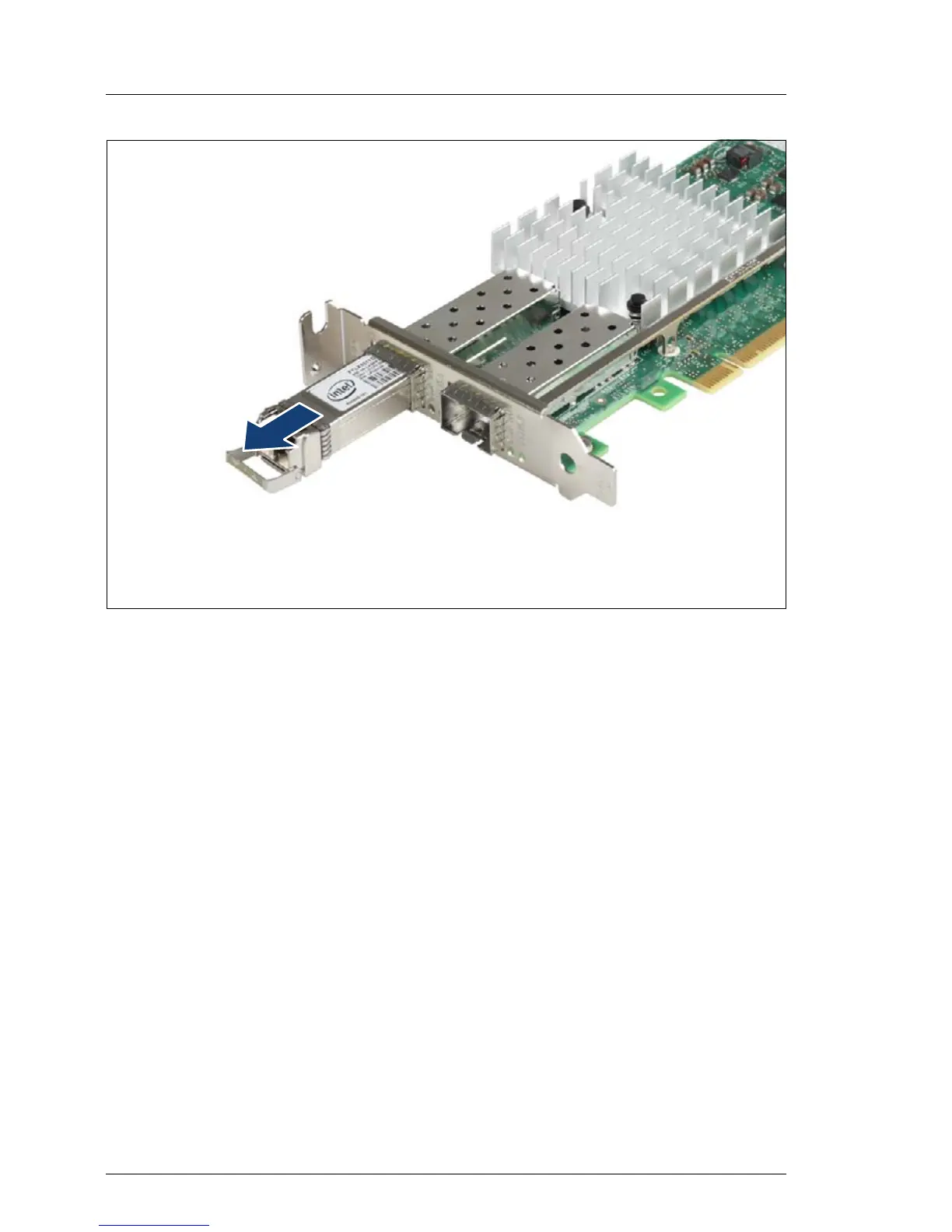

Figure 110: Removing the SFP+ transceiver module
Ê Pull the SFP+ transceiver module out of its socket connector.
9.3.2.4 Installing the protective optical port plug
Ê Attach the protective optical port plug to the transceiver optical bores.
I Place the removed SFP+ transceiver module in an antistatic bag or
other protective environment.
9.3.2.5 Installing an SFP+ transceiver module
Ê Perform the following procedure to install an SFP+ transceiver module:
– "Installing SFP+ transceiver modules" on page 191
