64 Upgrade and Maintenance Manual
RX100 S7
Basic hardware procedures
4.5 Opening the server
V CAUTION!
●
Only for non-hot plug components:
Before removing or attaching covers, turn off the server, all peripheral
devices, and any other connected devices. Also unplug all power
cords from the outlet. Failure to do so can cause electric shock.
●
The top cover must be replaced as soon as possible for purposes of
cooling, to comply with EMC regulations (regulations regarding
electromagnetic compatibility) and to prevent fires.
●
Follow the safety instructions in chapter "Important information" on
page 43.

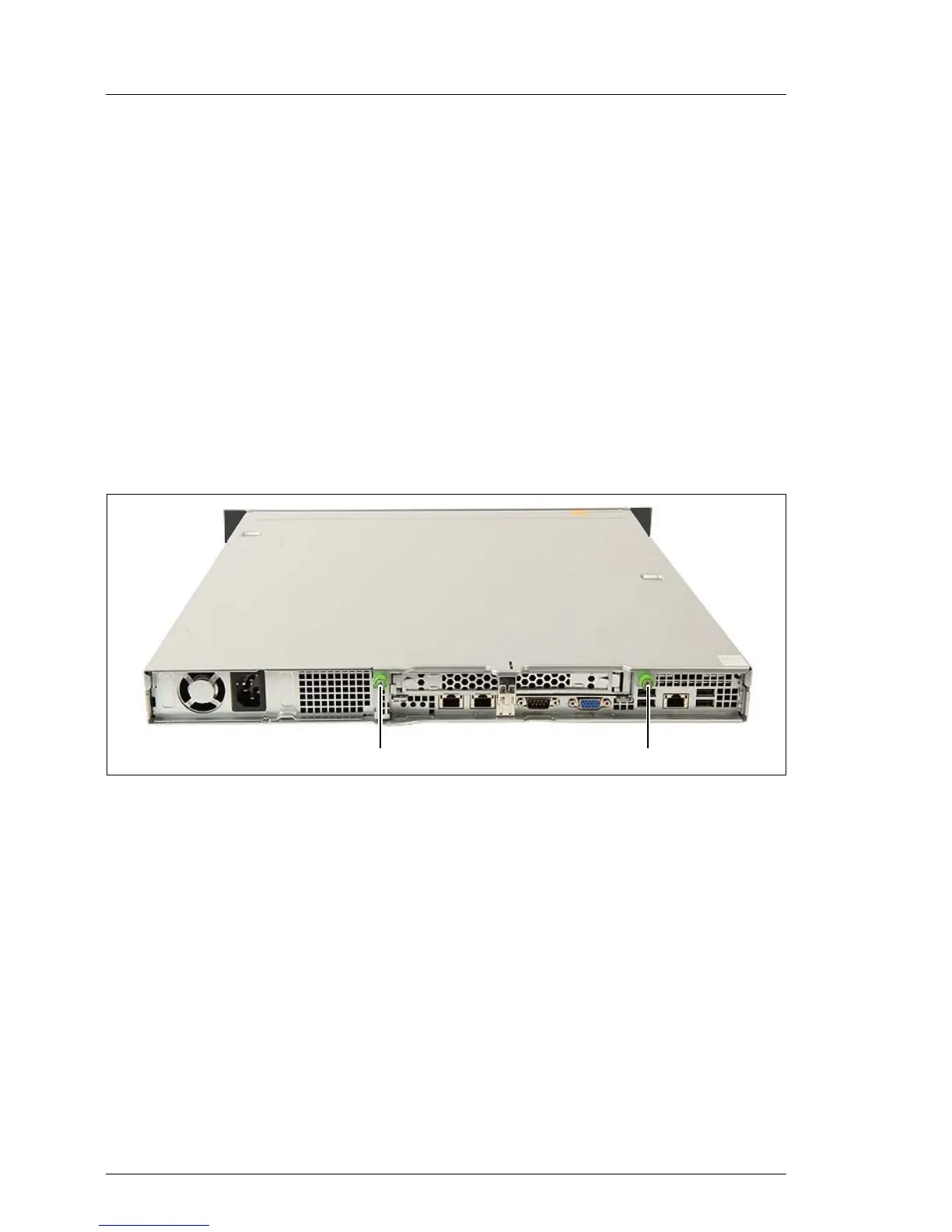

Figure 6: Loosening the two knurled screws
Ê Unlock the top cover by removing the two knurled screws at the rear side (1).
