442 Upgrade and Maintenance Manual
RX100 S7
Cables
16.12.4 Installing the new power cable

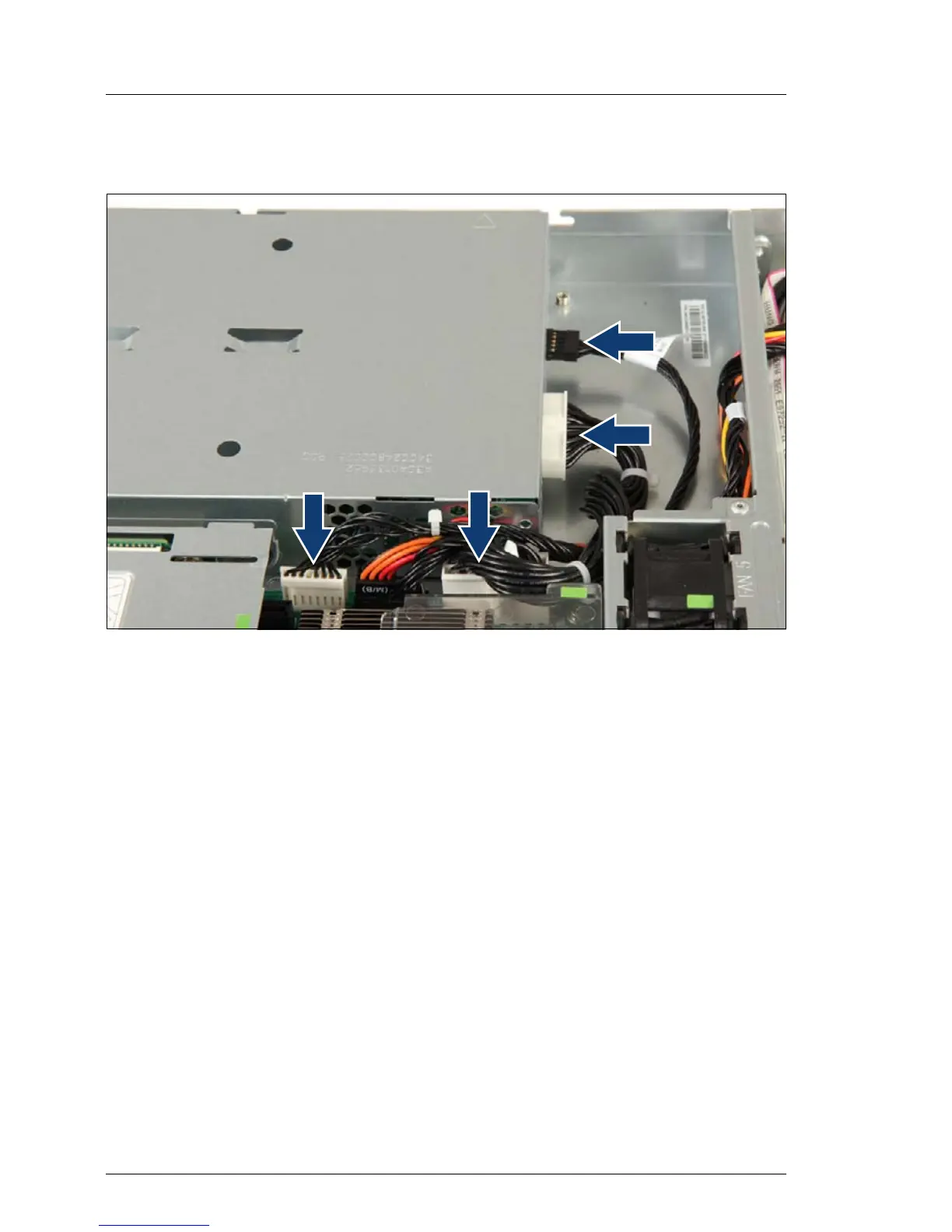

Figure 333: Connecting the power cables
Ê Connect the power cable to the corresponding system board connector
"PWR2" or "PWR1" and the power distribution board.
16.12.5 Concluding steps
Ê Perform the following procedures:
1. "Closing the server" on page 66
2. "Installing the server in the rack" on page 68
3. "Switching on the server" on page 72
4. "Closing the rack door" on page 73
