168 Upgrade and Maintenance Manual
RX100 S7
Hard disk drives / solid state drives
6. Release all HDD modules and pull them out a few centimeters, see
section "Removing the 3.5-inch HDD module" on page 164
I The HDD modules need not to be removed. But if you want to
remove them nevertheless, check if all HDD modules are uniquely
identified so that you can reinsert them into their original bays.
7.2.5.3 Disconnecting the cables

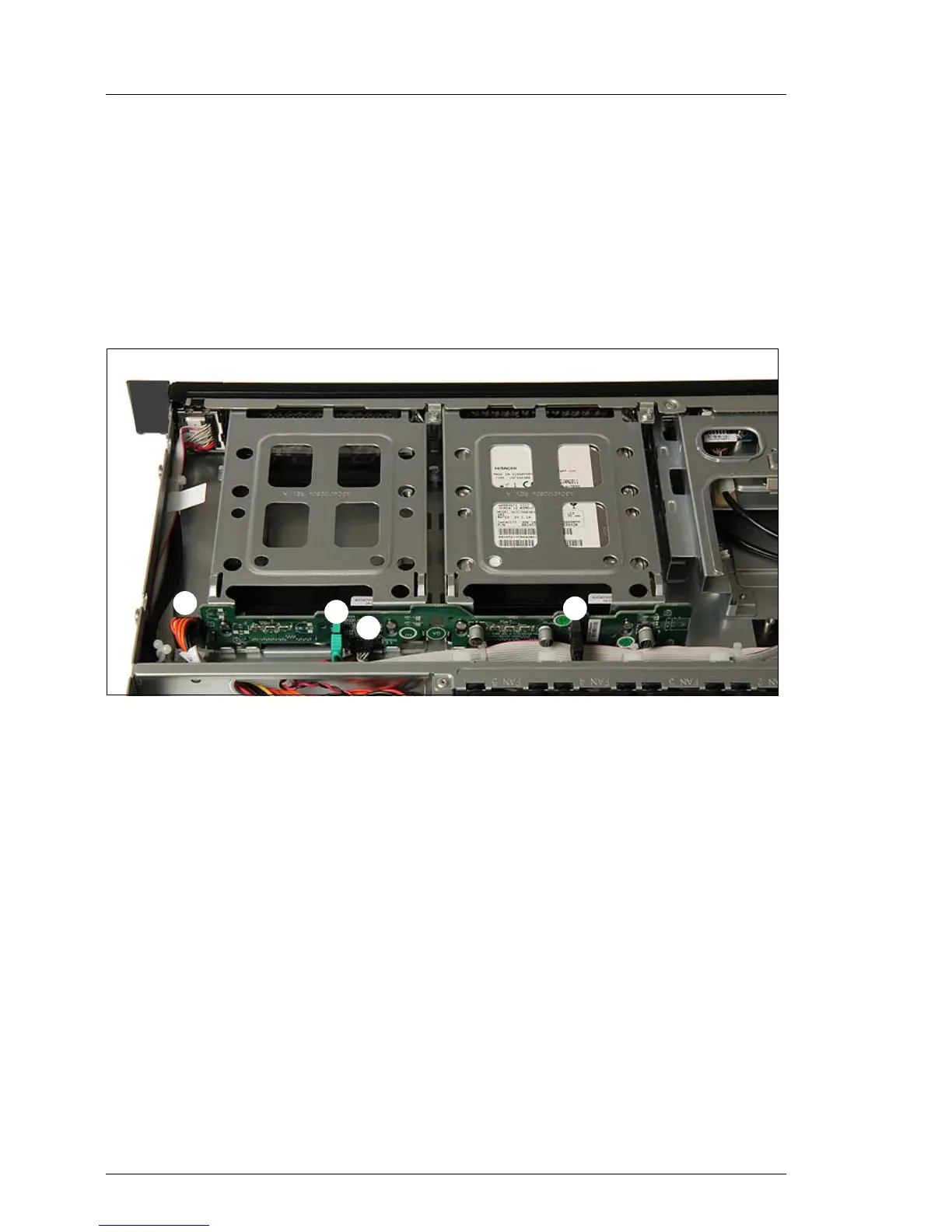

Figure 81: Disconnecting the cables from the 3.5-inch SAS/SATA backplane
Ê Disconnect the following cables from the SAS/SATA backplane:
– (1) power cable from connector J4
– (2) SGPIO cable from connector J2
– (3), (4) SAS/SATA data cables from connectors SATA1, SATA2
For the cable plan see section "Cabling" on page 462.
