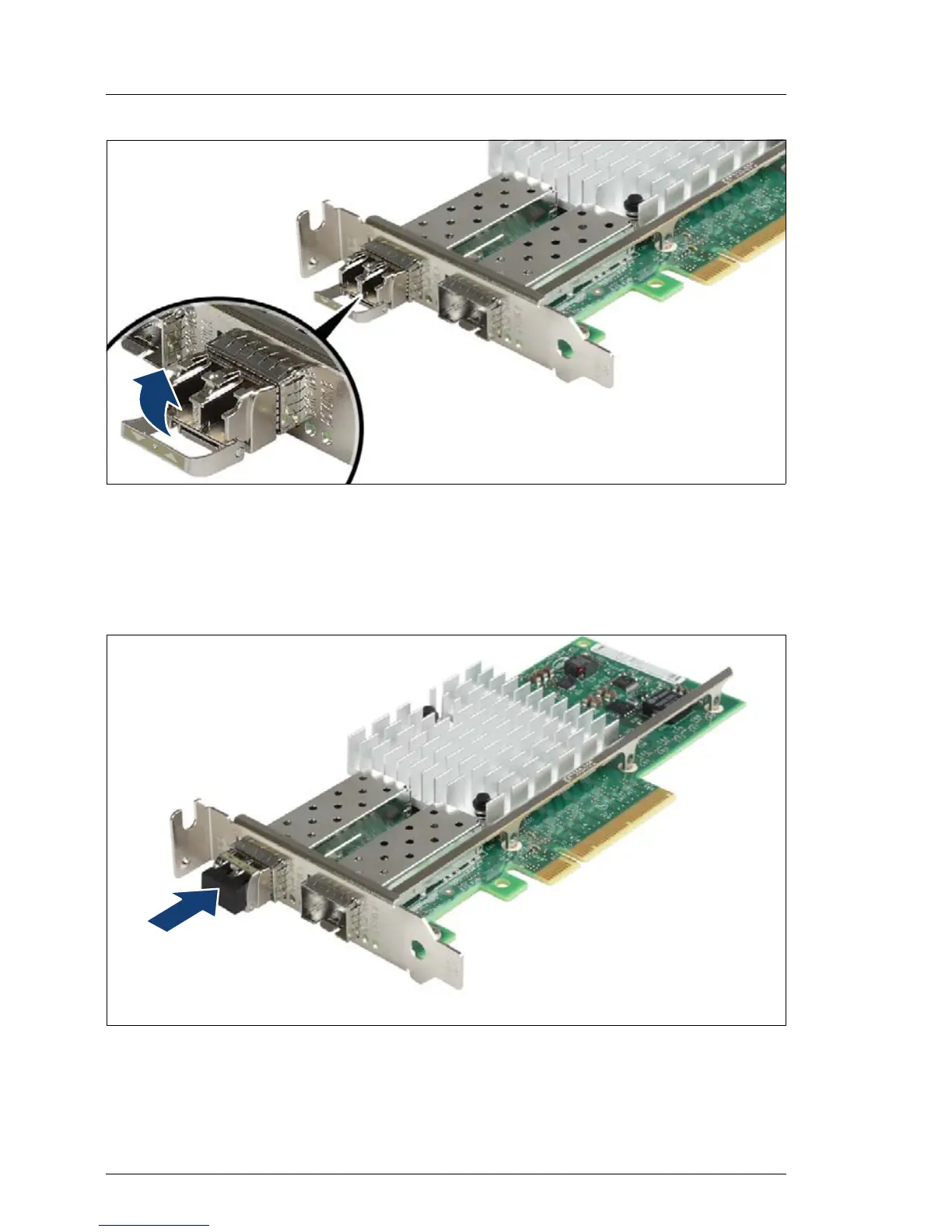

Figure 105: Latching the locking bail
Ê Carefully fold up and latch the locking bail.
9.3.1.4 Installing the protective optical port plug
Figure 106: Installing the protective optical port plug
Ê If the SFP+ transceiver module is not immediately connected to an LC
connector, attach the protective optical port plug to the transceiver optical
bores.
