System board and components
15.2.2.3 Removing the riser module 2
Ê Remove the riser module 2 as described in section "Removing the riser
module 2" on page 352.
15.2.2.4 Removing the defective UFM

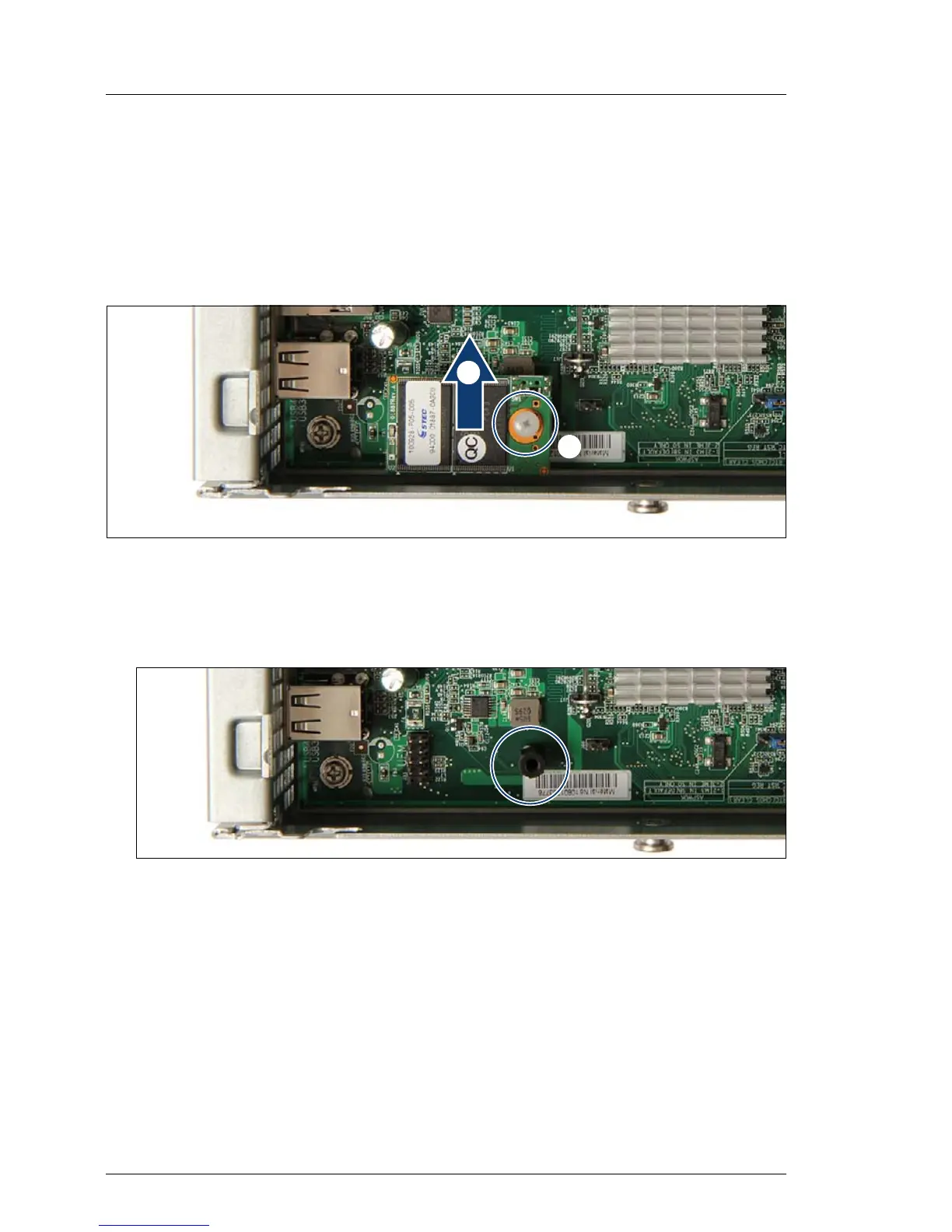

Figure 241: Removing the UFM
Ê Remove the nylon screw of the UFM (1).
Ê Disconnect and remove the UFM (2).
Figure 242: Remaining UFM spacer
The UFM spacer remains on the system board.
V CAUTION!
UFM contains customer information (e.g. IP address, License etc.). After
replacing the UFM, you must pass the defective UFM to the customer,
and ask for disposal. If the disposal of the defective UFM is requested by
the customer, you break it according to the following procedure, and
dispose it.
/
