V CAUTION!
Make sure that the connector side with the three dots is on the top (see
close-up). Otherwise you risk short-circuits.
9.5.1.4 Installing the BBU in the BBU holder
I There are different BBUs available. Please notice the position of the
three bolts (see circles in figure 147and figure 148) to recognise the right
position for installing the BBU in the BBU holder.

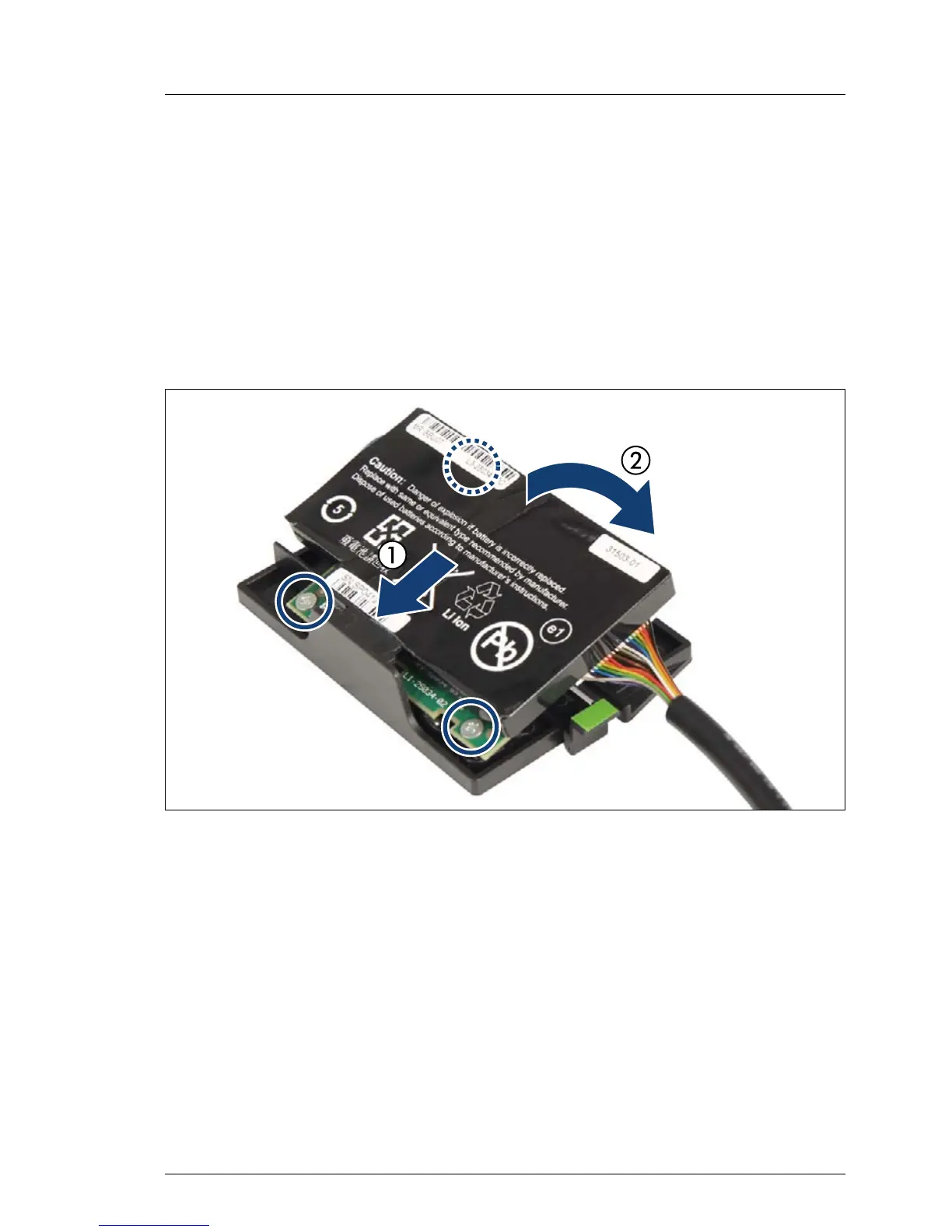

Figure 147: Installing the BBU in the BBU holder (example A)
