Fujitsu PRIMERGY RX100 S7 - Installing the New Power Cable

RX100 S7 Upgrade and Maintenance Manual 405
Cables
16.5.4 Installing the new power cable

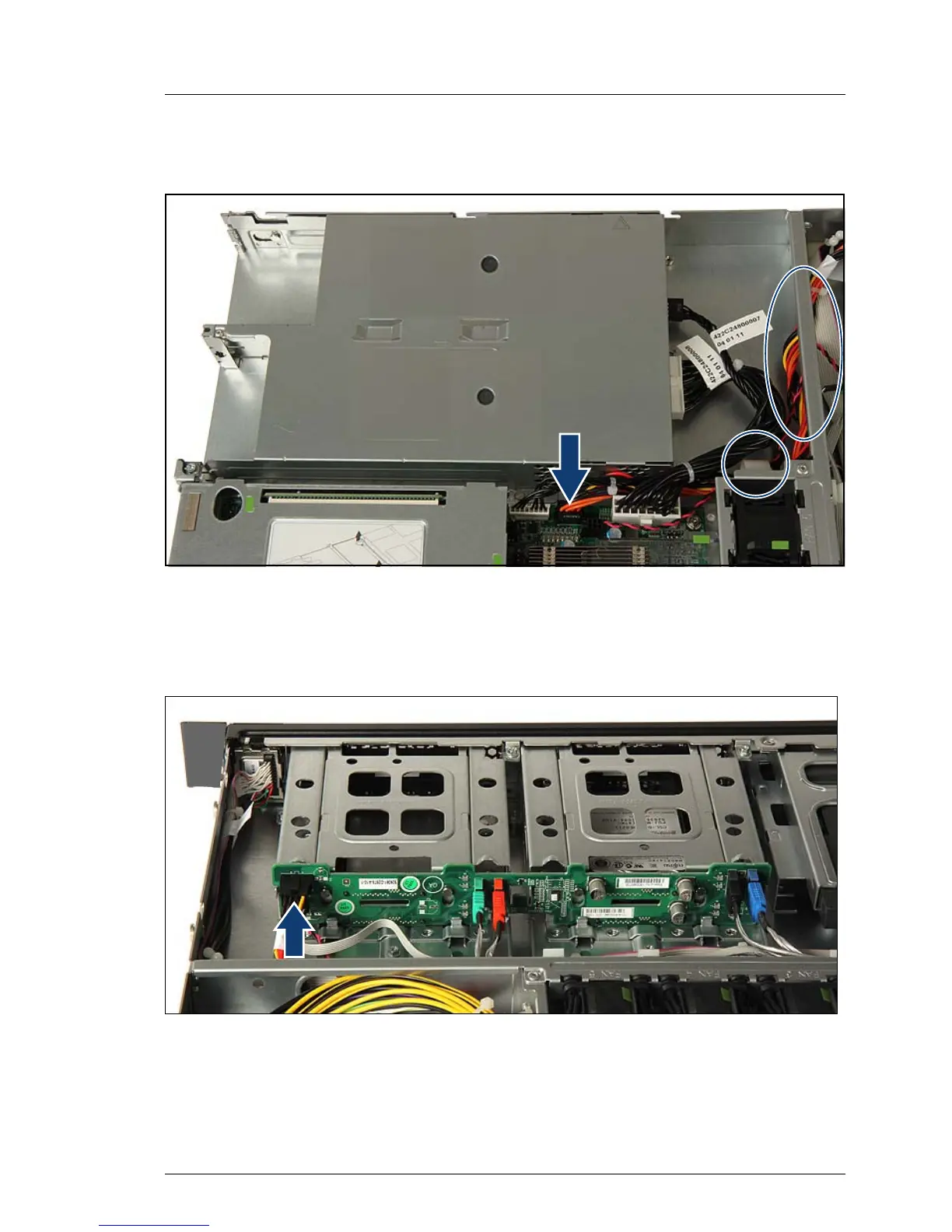

Figure 286: Connecting the power cable to the system board
Ê Connect the power cable to the connector "BP PWR" on the system board.
Ê Route the power cable as before.
Figure 287: Connecting the power cable to the SAS/SATA backplane
Ê Connect the power cable to the SAS/SATA backplane.
