Fujitsu PRIMERGY RX100 S7 - Concluding Steps; Installing the Expansion Card; Installing the New Riser Card; Installing the Riser Module 1

RX100 S7 Upgrade and Maintenance Manual 229
Expansion cards and backup units
9.4.8.6 Installing the new riser card

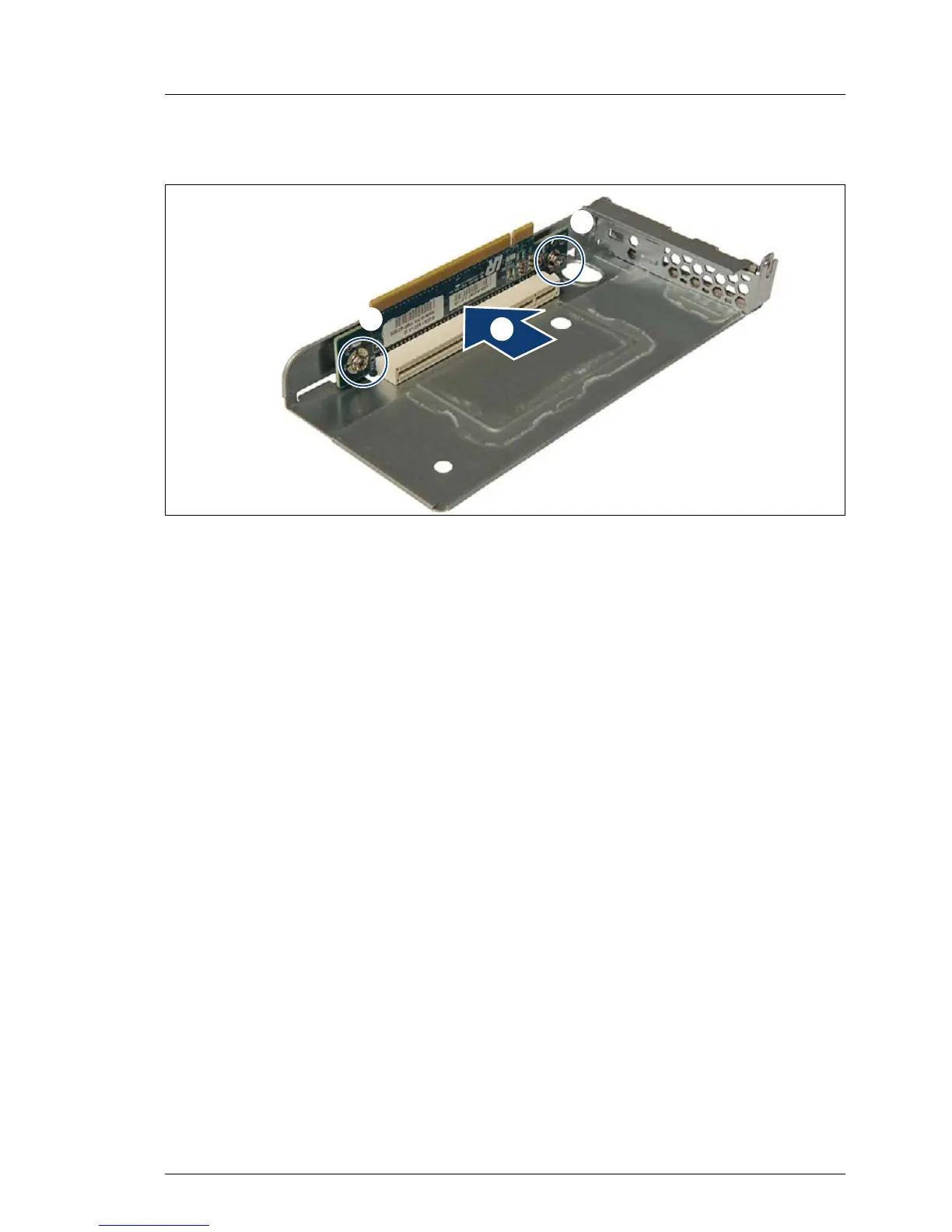

Figure 137: Installing the riser card - slot 3
Ê Insert the riser card (1).
Ê Fasten the riser card with two screws (2).
9.4.8.7 Installing the expansion card
Ê Install the expansion card as described in section "Installing the expansion
card" on page 201.
9.4.8.8 Installing the riser module 1
Ê Install the riser module 1 as described in section "Installing the riser module
1" on page 202.
9.4.8.9 Concluding steps
Ê Perform the following procedures:
1. "Closing the server" on page 66
2. "Installing the server in the rack" on page 68
3. "Switching on the server" on page 72
4. "Closing the rack door" on page 73
