RX100 S7
Upgrade and Maintenance Manual 123
Power supply
6.3.1.5 Installing the cable tie

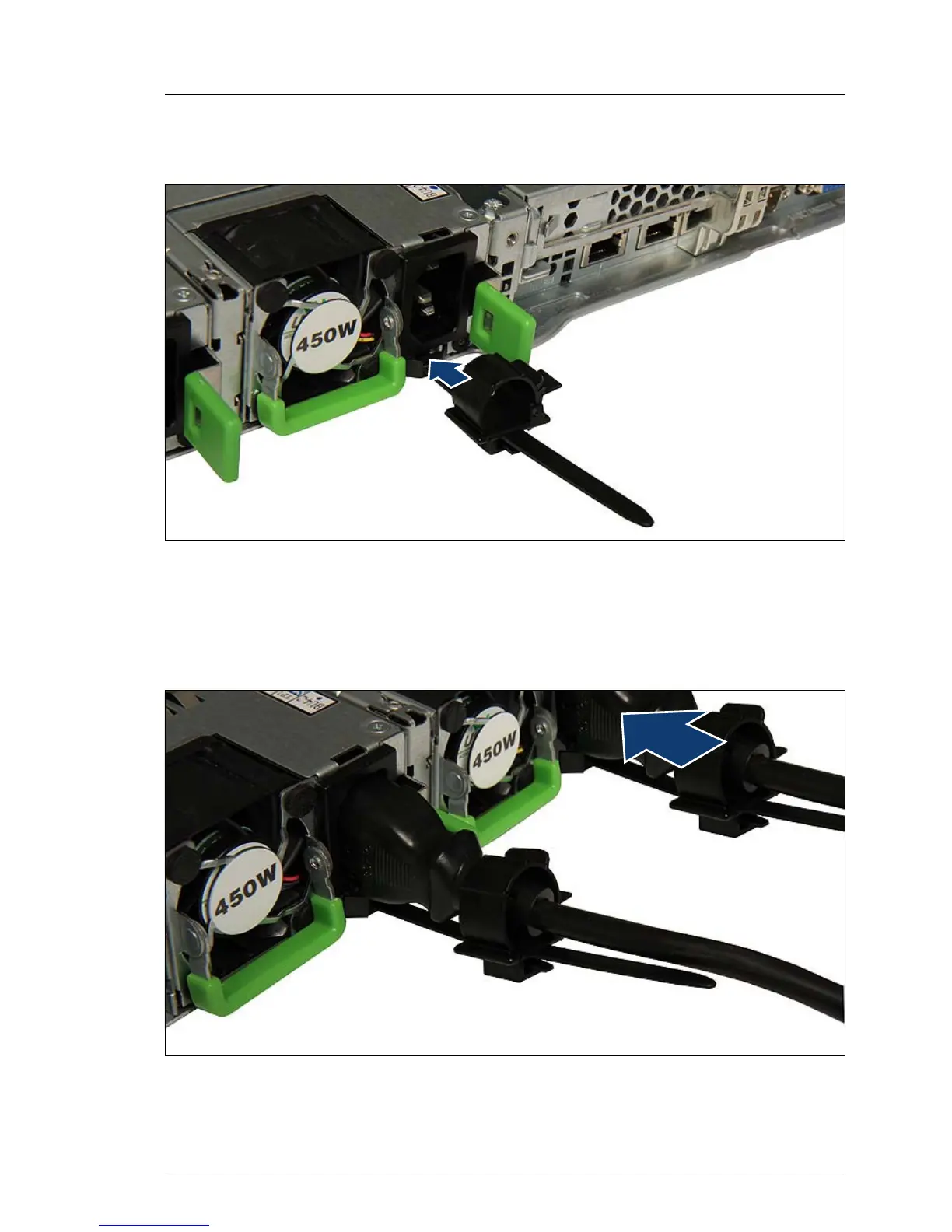

Figure 42: Installing the cable tie
Ê Push the cable tie into the corresponding hole until it clicks in.
6.3.1.6 Connecting the power cord
Figure 43: Connecting the power cord
Ê Open the cable tie.
