438 Upgrade and Maintenance Manual
RX100 S7
Cables
16.11.5 Installing the new RAID card cable

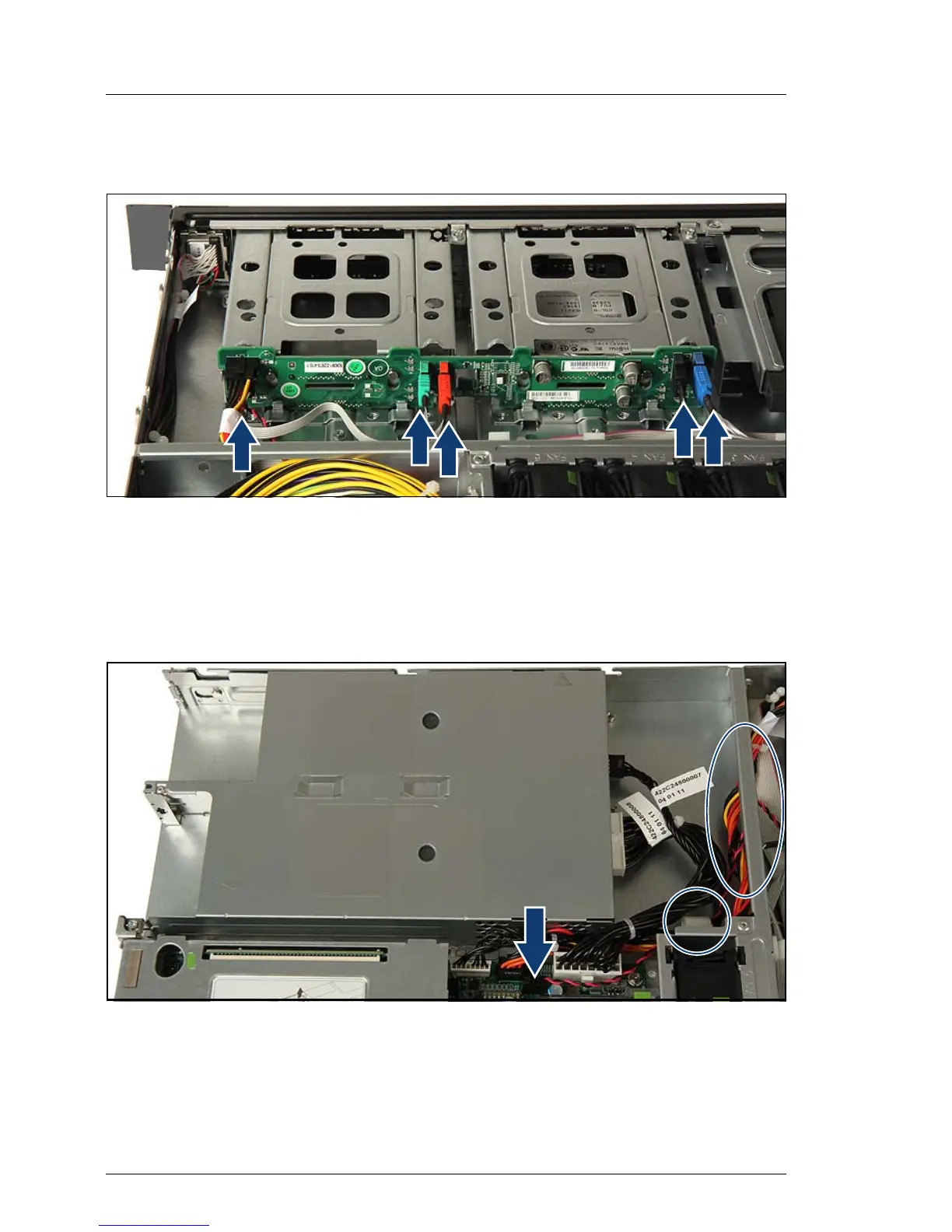

Figure 328: Connecting the RAID card cable (example 2.5-inch SAS/SATA backplane)
Ê Connect the RAID card cable to the SAS/SATA backplane:
– SGPIO connector to connector J2
– SATA connectors to connectors SATA1, SATA2, SATA3, SATA4
according the color coding
Figure 329: Connecting the SGPIO line to the system board
Ê Connect the free end of the SGPIO line to the connector "BP SGPIO" on the
system board.
Ê Route the SGPIO line in the cable clamp (see circle).
