Expansion cards and backup units
9.4.5.4 Removing the defective expansion card

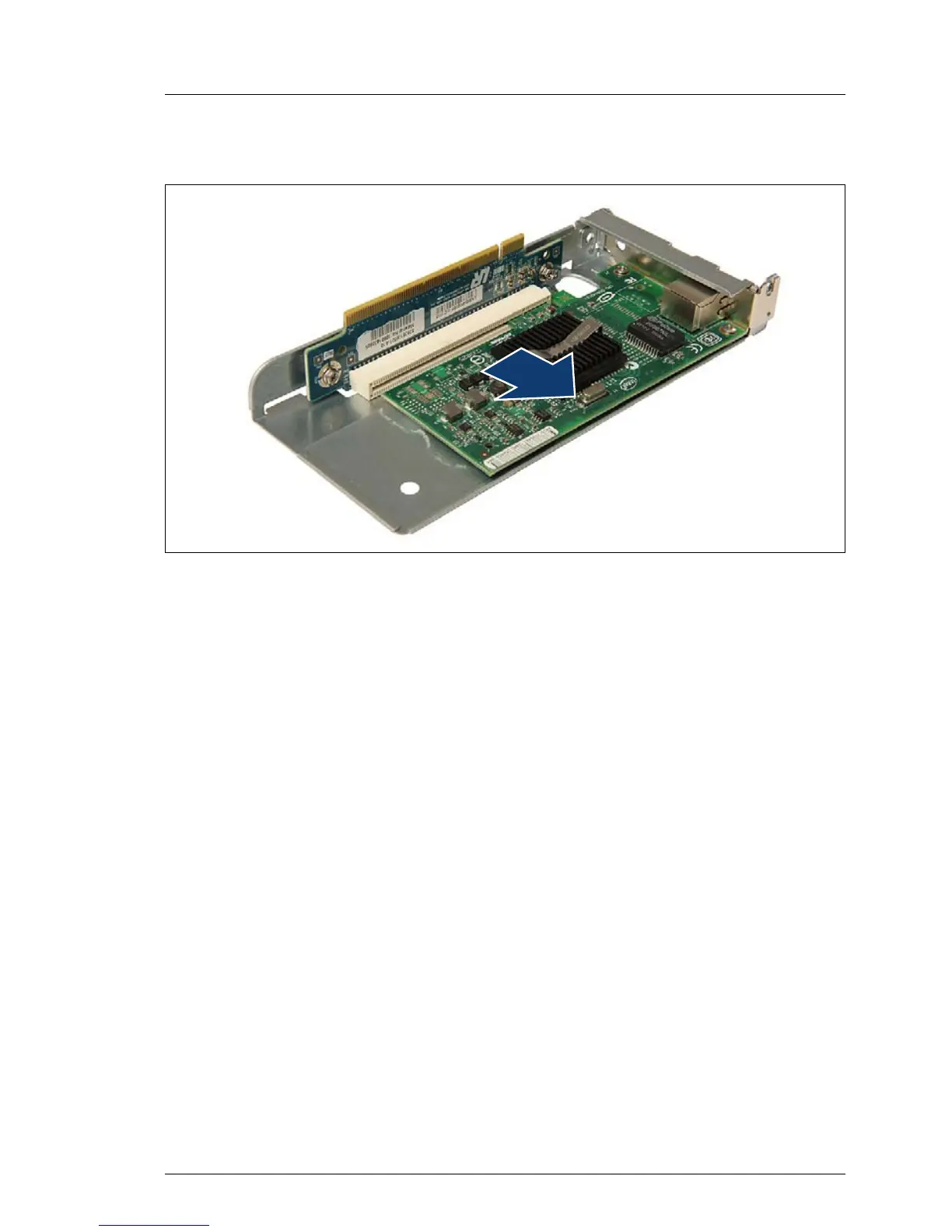

Figure 132: Removing the expansion card - slot 3
Ê Pull out the expansion card from the riser card slot.
Ê If the slot bracket on the defective expansion card is to be reused, remove it
from the board as described in section "Installing expansion card slot
brackets" on page 183.
9.4.5.5 Installing the new expansion card
Ê Install the expansion card as described in section "Installing the expansion
card" on page 201.
9.4.5.6 Installing the riser module 1
Ê Install the riser module 1 as described in section "Installing the riser module
1" on page 202.
