RX100 S7
Upgrade and Maintenance Manual 129
Power supply
6.3.2.6 Connecting the power cord

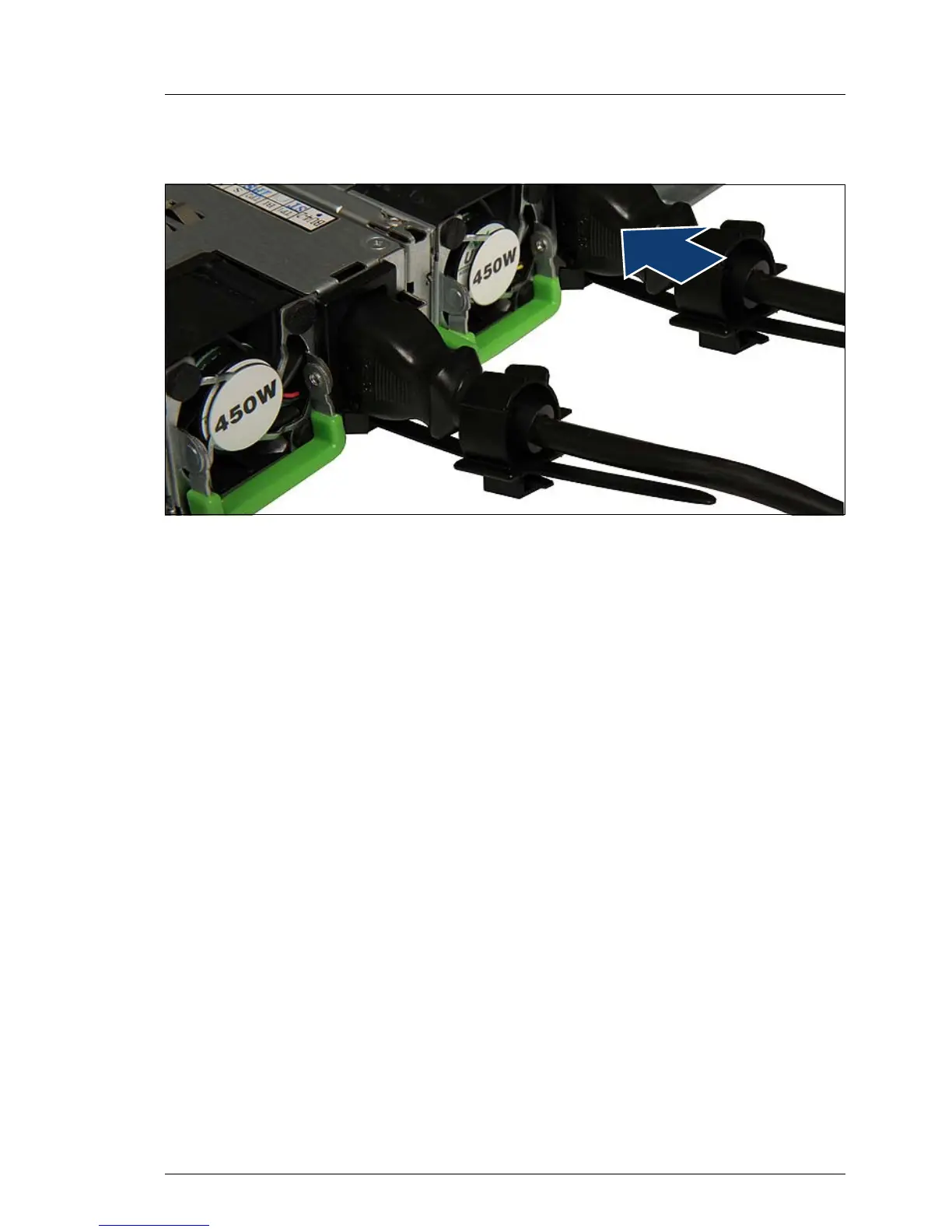

Figure 49: Connecting the power cord
Ê Open the cable tie.
Ê Lay the power cord in the cable tie.
Ê Connect the power cord to the power supply module.
Ê Close the cable tie.
Ê Connect the power cord to the mains.
6.3.2.7 Checking the power supply modules
Ê Check whether the power supply modules work properly.
A power supply module works properly when the indicator (1) in figure 44
lights green. For more information see "Connectors and indicators" on
page 447.
6.3.2.8 Concluding steps
Ê Perform the following procedures:
1. Only when replacing a power supply module in a non-redundant
configuration: "Switching on the server" on page 72
2. "Performing a fan test after replacing a defective fan" on page 99
3. "Closing the rack door" on page 73
