Fujitsu PRIMERGY RX100 S7 - Removing the Defective Power Distribution Board

RX100 S7 Upgrade and Maintenance Manual 135
Power supply
6.3.3.7 Removing the defective power distribution board

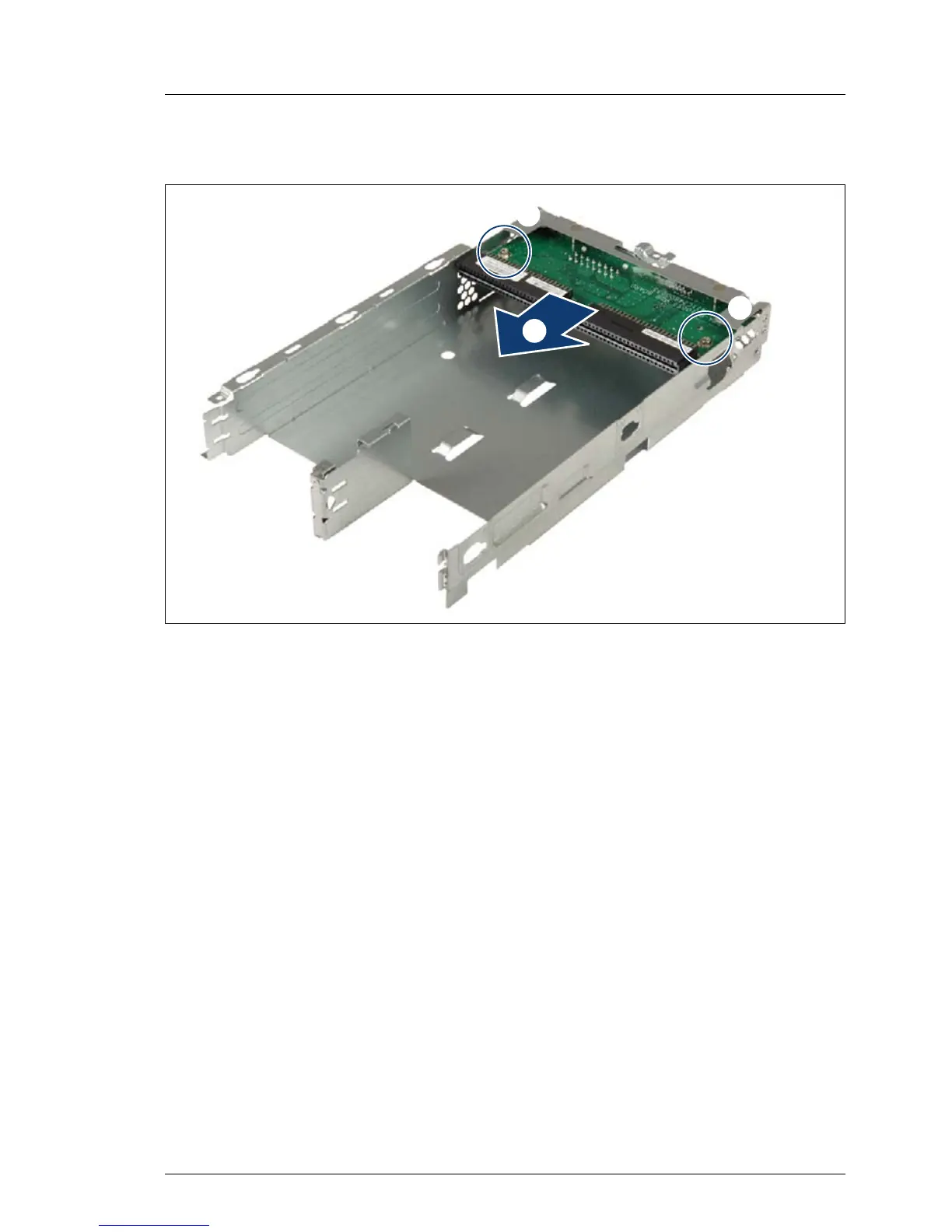

Figure 56: Removing the power distribution board from the PSU cage
Ê Remove the two screws (1).
Ê Pull the power distribution board in direction of the arrow (2).
Ê Remove the power distribution board.
