284 Upgrade and Maintenance Manual
RX100 S7
Processor
11.2.7 Removing the defective processor

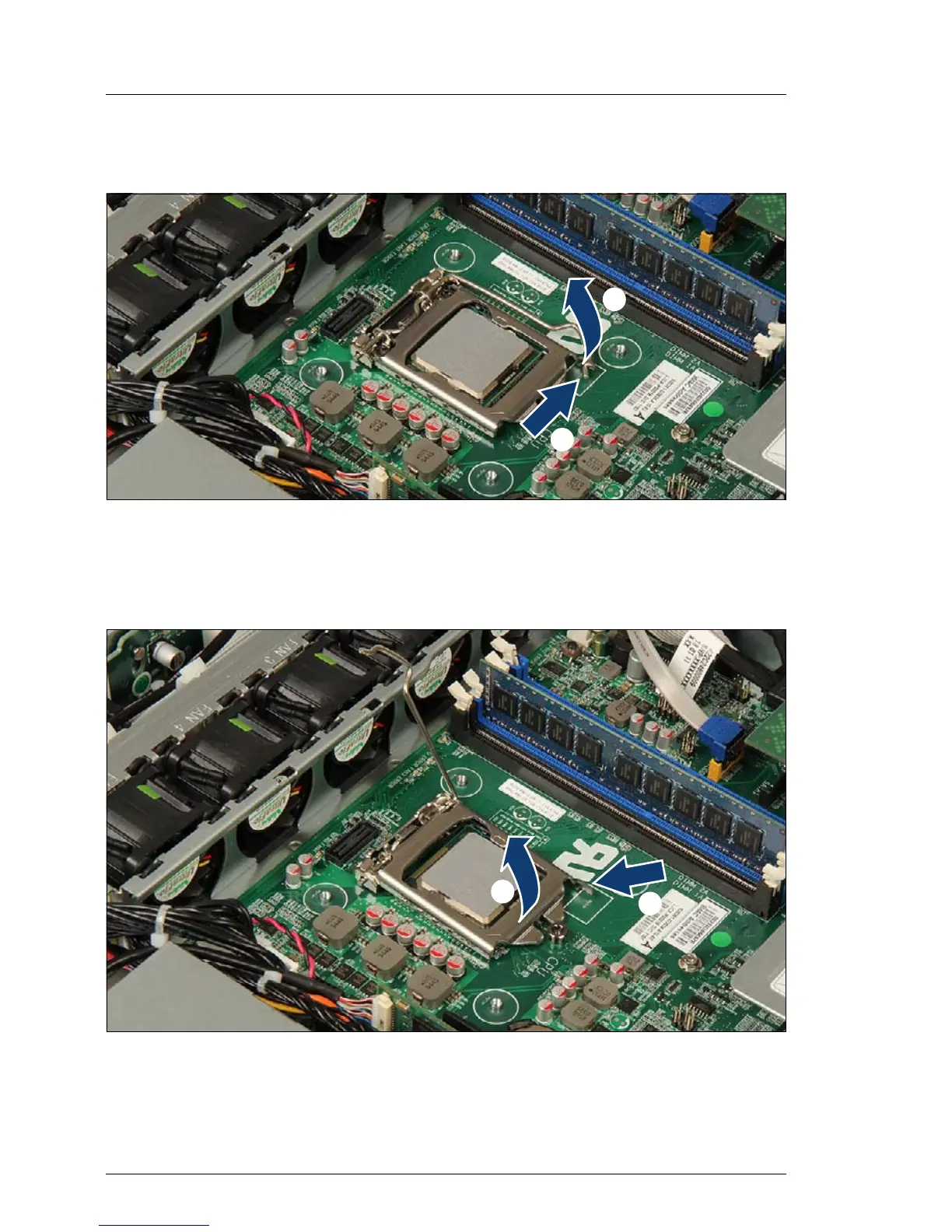

Figure 184: Opening the lever
Ê Press down the lever (1) and unhook it.
Ê Open the lever (2).
Figure 185: Opening the holder
Ê Take the holder by the small grip (1) and open it (2).
/
