Fujitsu PRIMERGY RX100 S7 - Installing the New SGPIO Cable

408 Upgrade and Maintenance Manual RX100 S7
Cables
Ê Thread the cable through the recess (see circle) and remove the SGPIO
cable.
16.6.4 Installing the new SGPIO cable

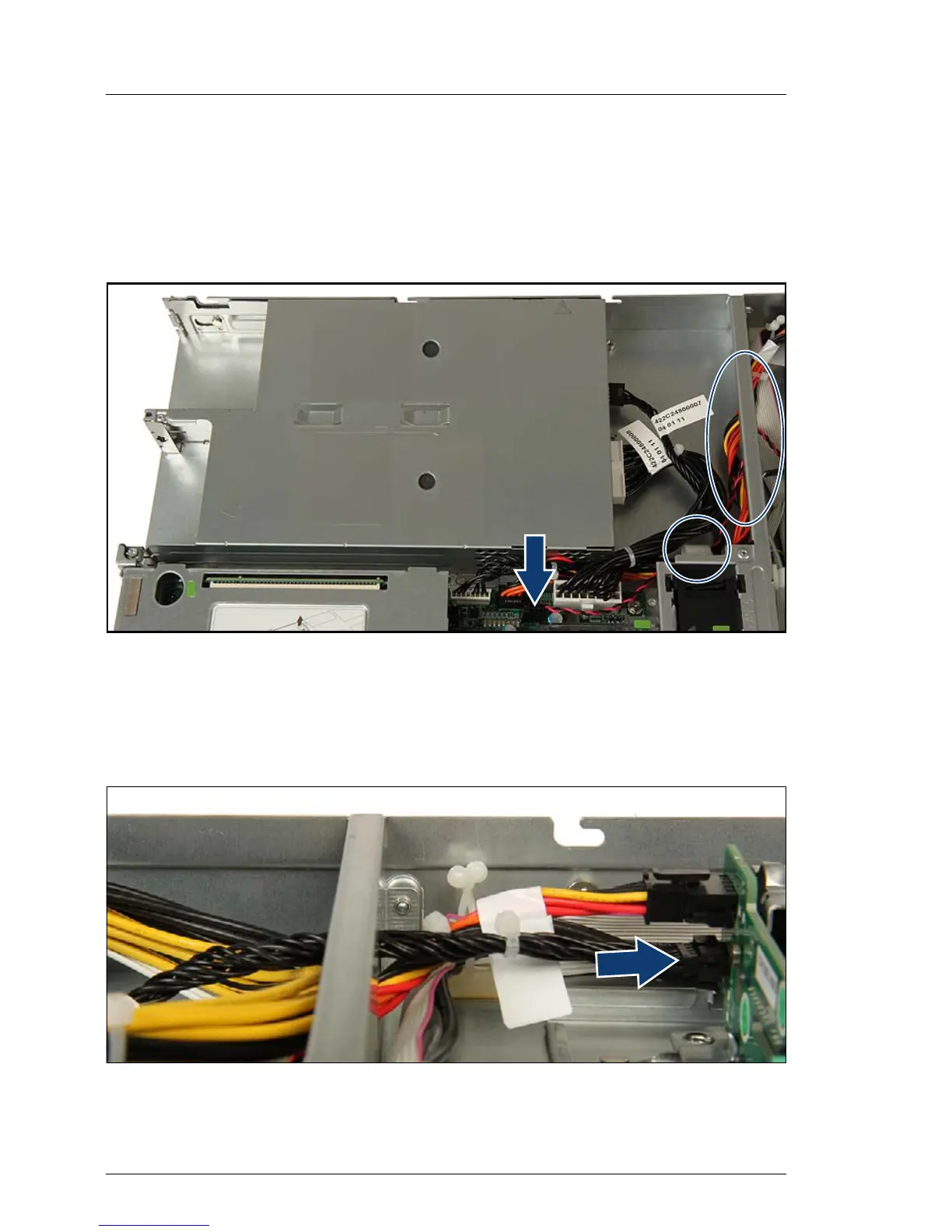

Figure 290: Connecting the SGPIO cable to the system board
Ê Connect the SGPIO cable to the connector "BP SGPIO" on the system
board.
Ê Route the SGPIO cable as before.
Figure 291: Connecting the SGPIO cable to the SAS/SATA backplane
Ê Connect the SGPIO cable to the SAS/SATA backplane.
