290 Upgrade and Maintenance Manual
RX100 S7
Processor
11.2.10 Installing the heat sink

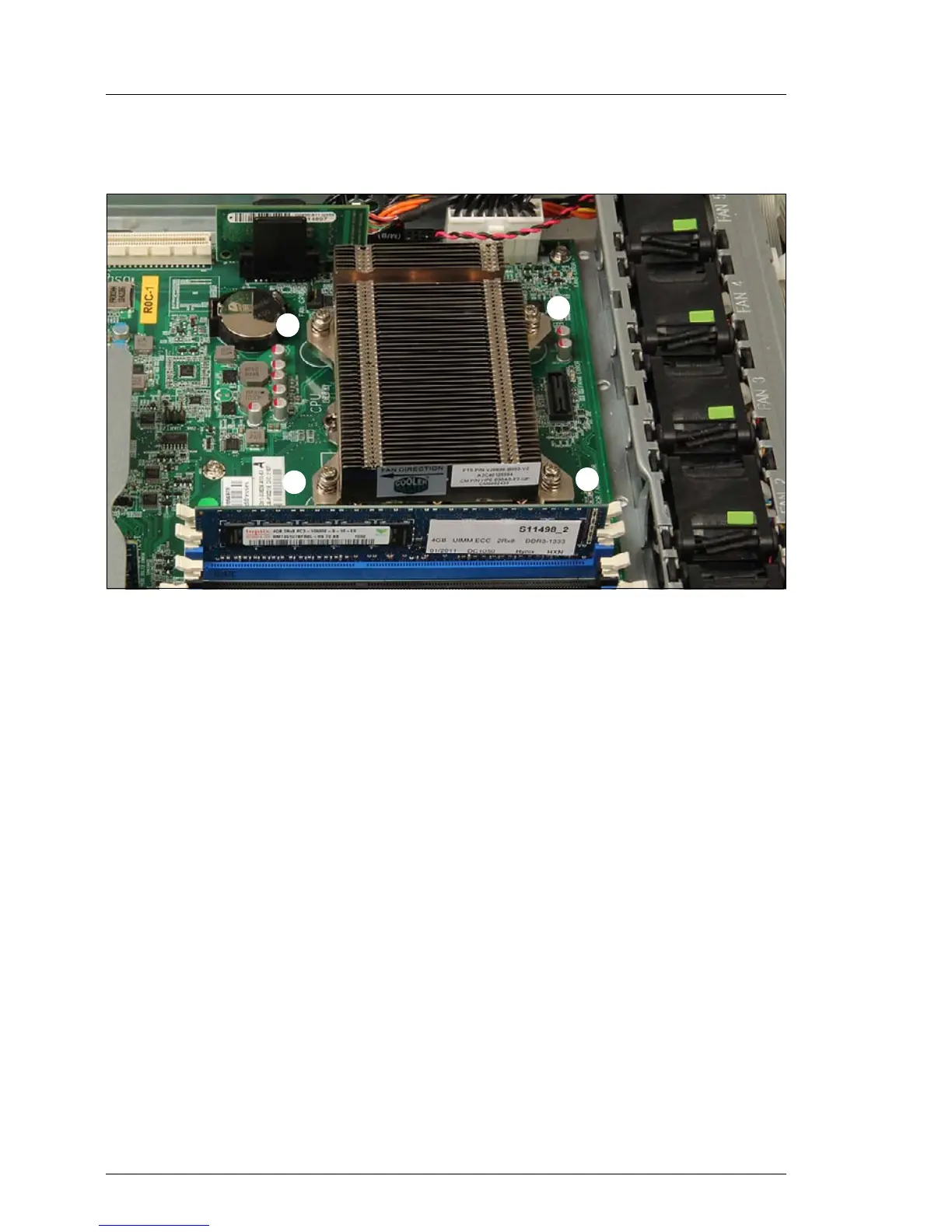

Figure 191: Installing the heat sink
Ê Align the heat sink and fit it on the processor socket.
Ê Position the screws in the holes carefully, making sure they are upright.
Ê Fasten it in a crossover pattern with four screws according to the numbering
(torque 6.0 Nm, the description of this torque value doesn't apply to the
Japanese market.)
/
