Fujitsu PRIMERGY RX100 S7 - Concluding Steps; Installing the 3.5-Inch HDD Module

162 Upgrade and Maintenance Manual RX100 S7
Hard disk drives / solid state drives
7.2.2.4 Installing the 3.5-inch HDD module

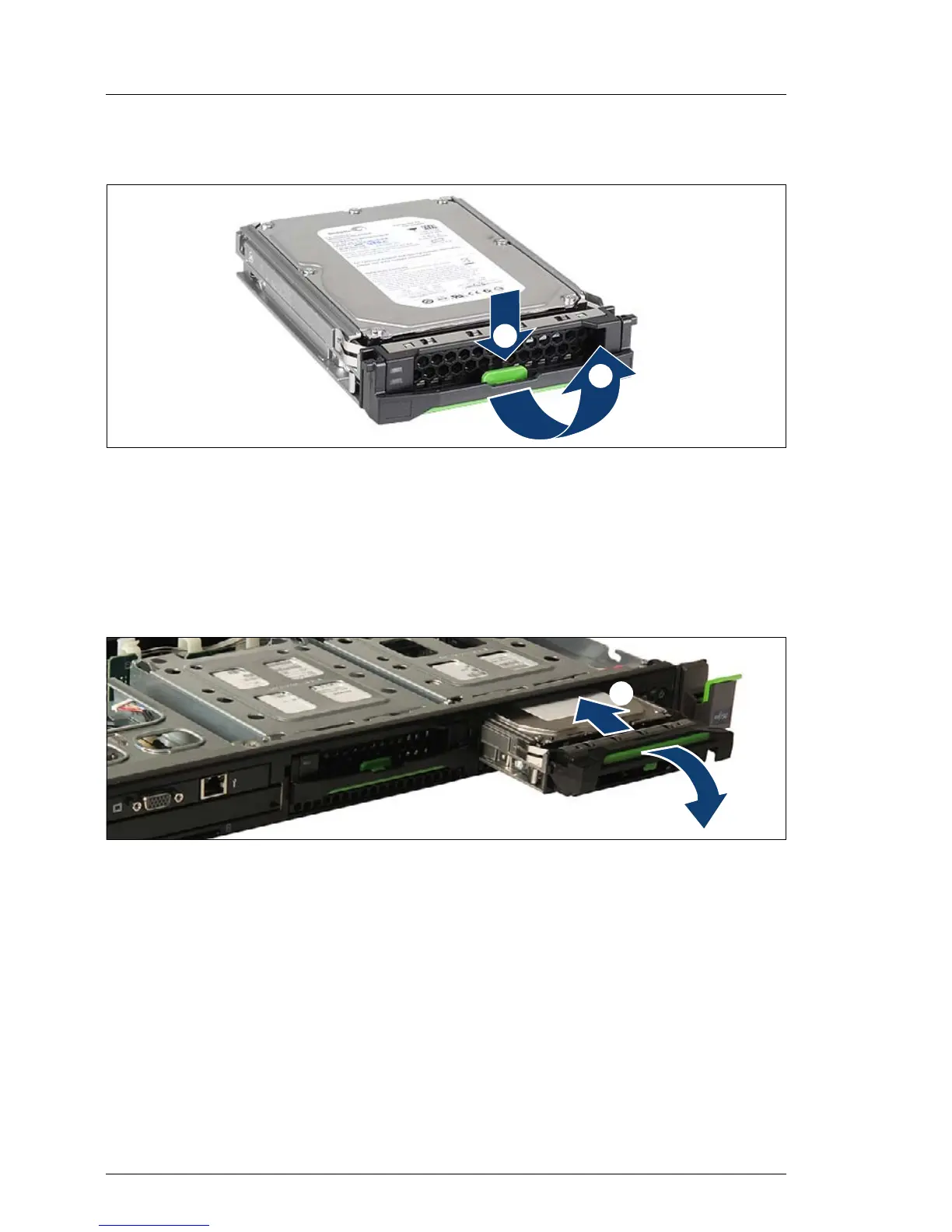

Figure 77: Unlocking the 3.5-inch HDD module
Ê Release the locking mechanism as follows:
1. Press the locking button (1).
2. Push the handle of the HDD module fully in the direction of the arrow (2).
The HDD module is now unlocked.
Figure 78: Installing the 3.5-inch HDD module
Ê Carefully push the HDD module into the empty bay (1) until it stops.
Ê Push the handle completely (2) in the direction of the arrow until the locking
mechanism engages.
7.2.2.5 Concluding steps
Ê Perform the following procedures:
1. "Closing the rack door" on page 73
2. "Performing a RAID array rebuild" on page 95
