RX100 S7
Upgrade and Maintenance Manual 437
Cables

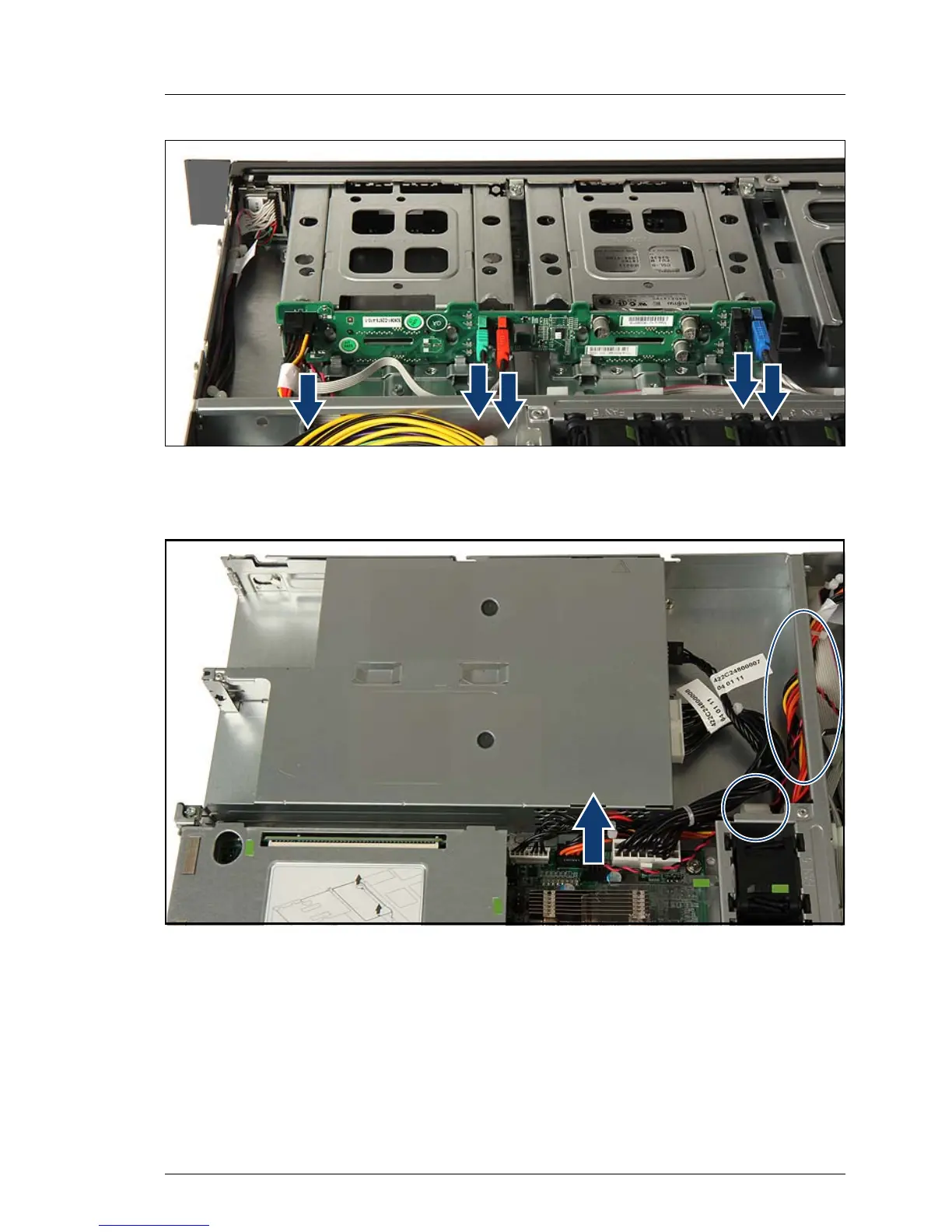

Figure 326: Disconnecting the RAID card cable (example 2.5-inch SAS/SATA backplane)
Ê Disconnect the RAID card cable from the SAS/SATA backplane.
Figure 327: Disconnecting the SGPIO line from the system board
Ê Disconnect the SGPIO line from the system board connector "BP SGPIO".
Ê Remove the SGPIO line from the cable clamp (see circle).
Ê Thread the SGPIO line through the recess (see circle).
Ê Remove the RAID card cable.
