RX100 S7
Upgrade and Maintenance Manual 113
Power supply

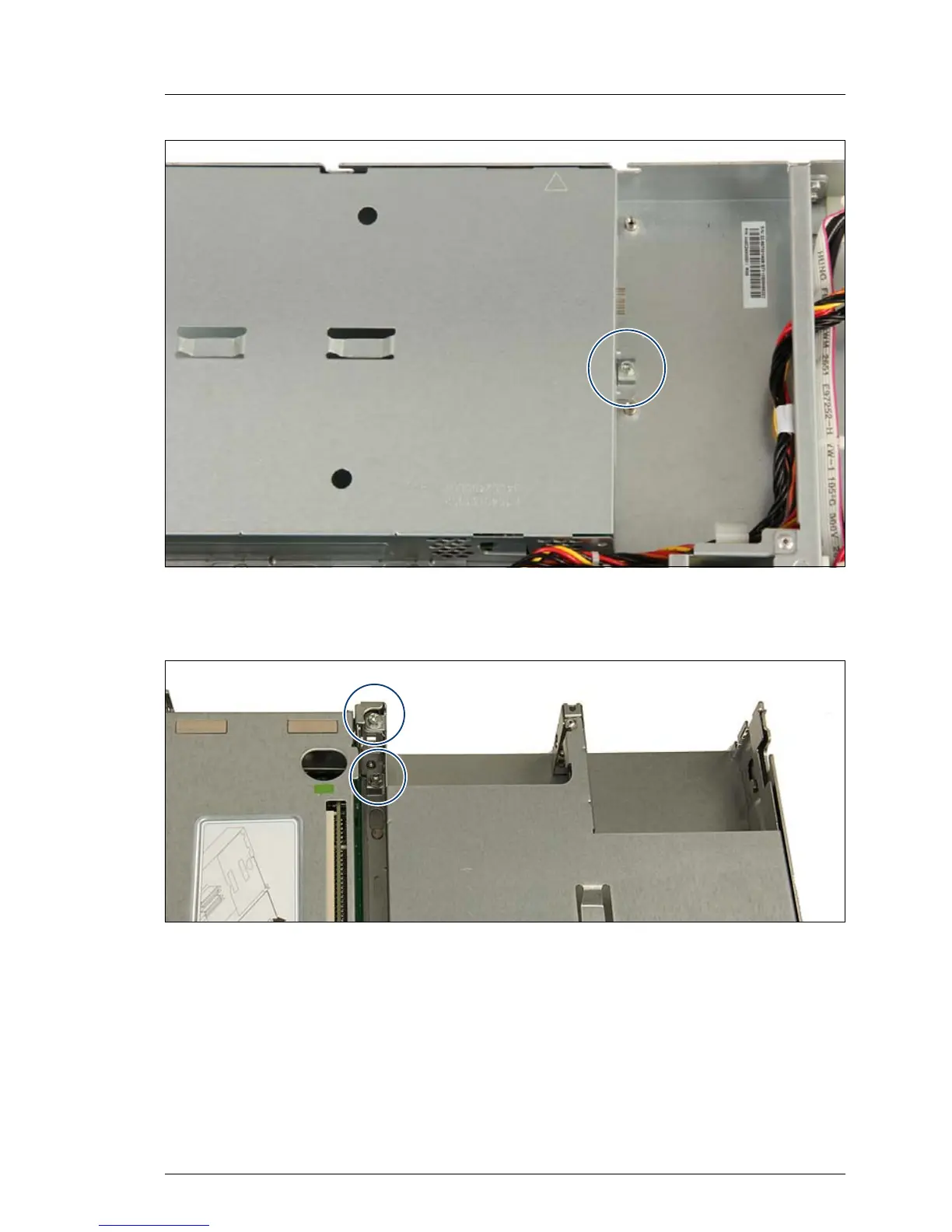

Figure 28: Fastening the PSU cage - screw inside
Ê Fasten the PSU cage with the screw.
Figure 29: Fastening the PSU cage - two screws
Ê Fasten the PSU cage with the two screws.
