RX100 S7
Upgrade and Maintenance Manual 115
Power supply

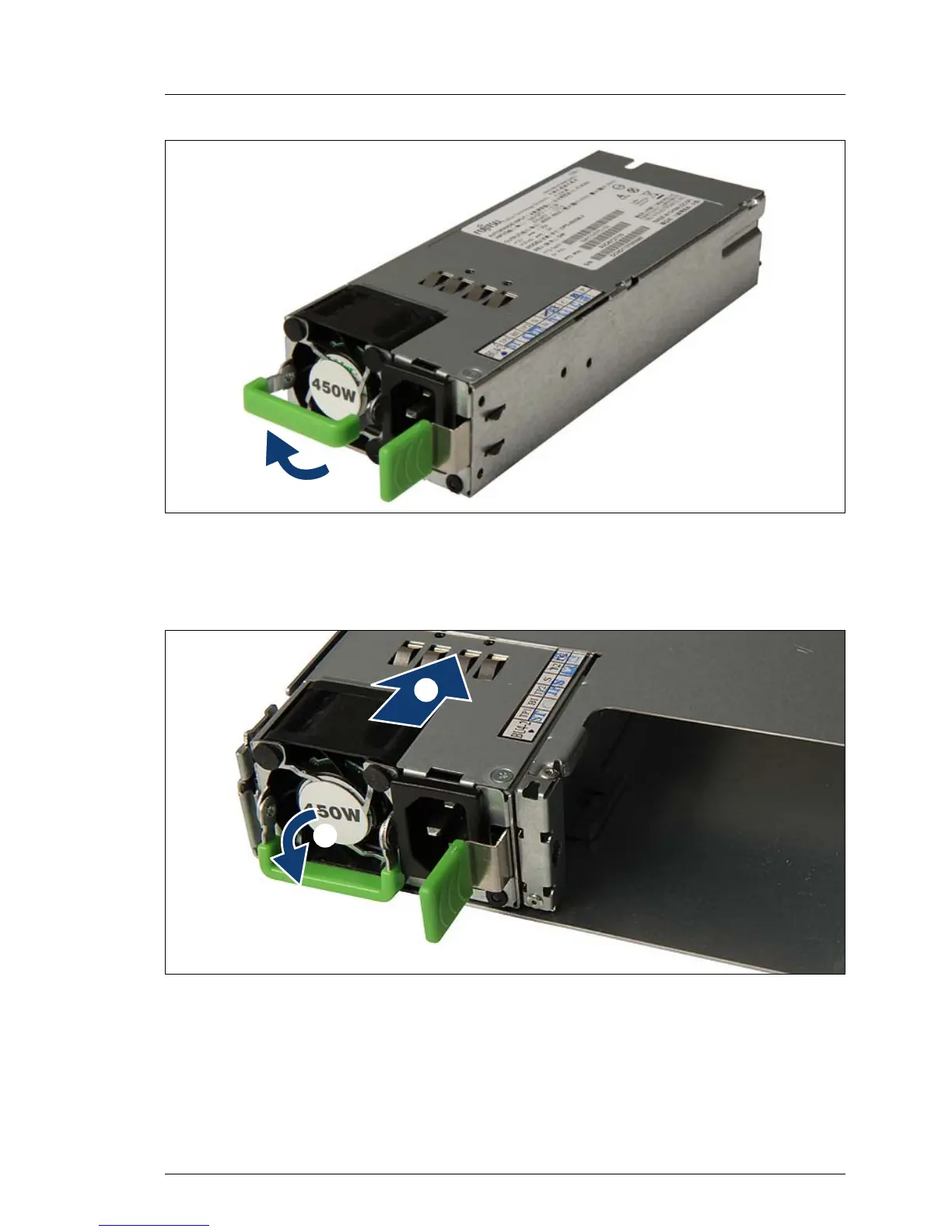

Figure 31: Unlocking the power supply module
Ê Push the handle of the power supply module halfway upward in the direction
of the arrow.
Figure 32: Installing the power supply module
Ê Carefully push the power supply module into the empty bay (1) until it stops.
Ê Push the handle of the power supply module as far as it will go in the
direction of the arrow (2).
