176 Upgrade and Maintenance Manual
RX100 S7
Fans

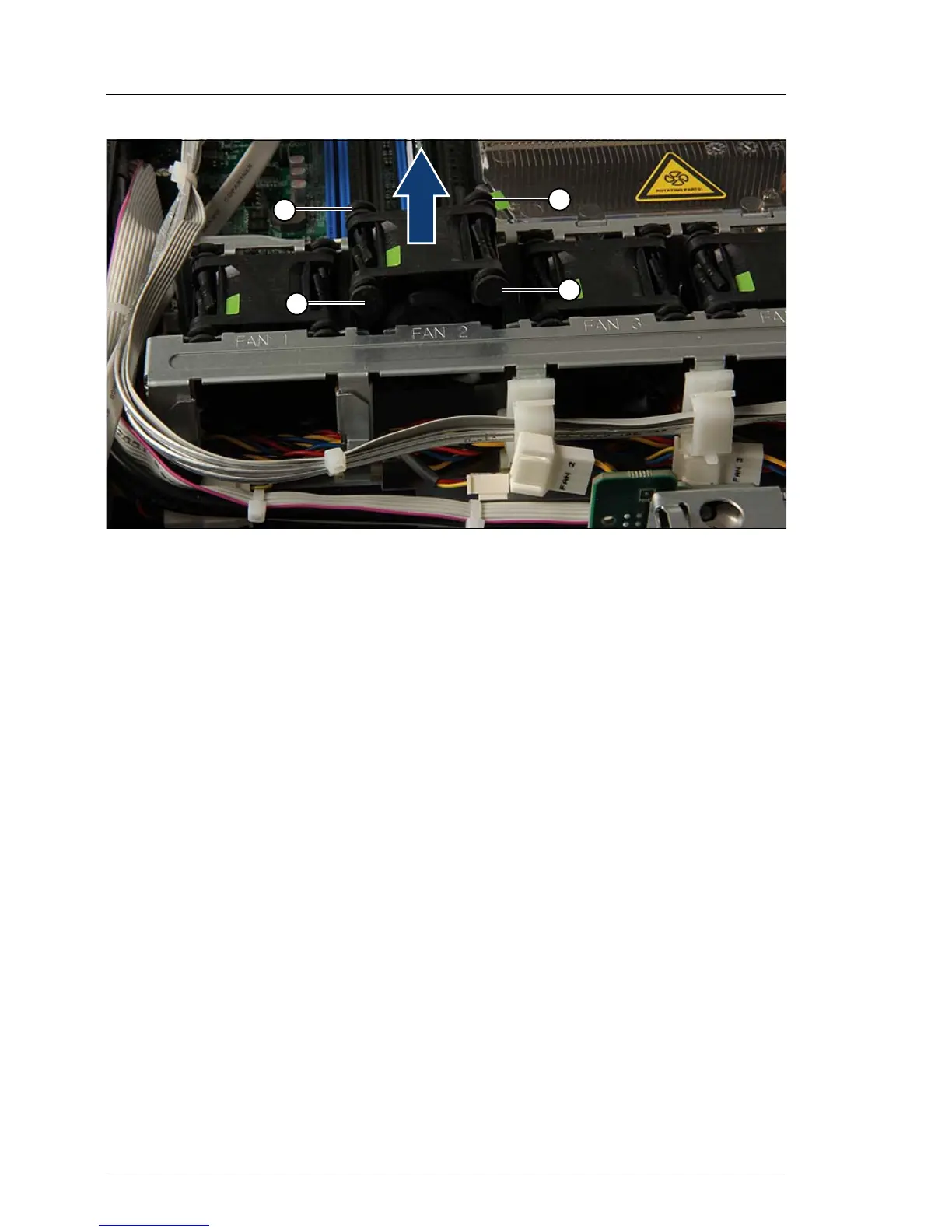

Figure 87: Removing the fan module
Ê Lift off the fan module upward about 2 cm.
To do this, press up the four rubber pins (A).
Ê Push the fan cable through the opening of the fan cage.
Ê Take out the fan module.
A
A
A
A
