214 Upgrade and Maintenance Manual
RX100 S7
Expansion cards and backup units
V CAUTION!
Lift up the expansion card (e.g. Cougar 3) while removing the expansion
card from slot 1 in order to prevent the components to be damaged by
the stand offs.

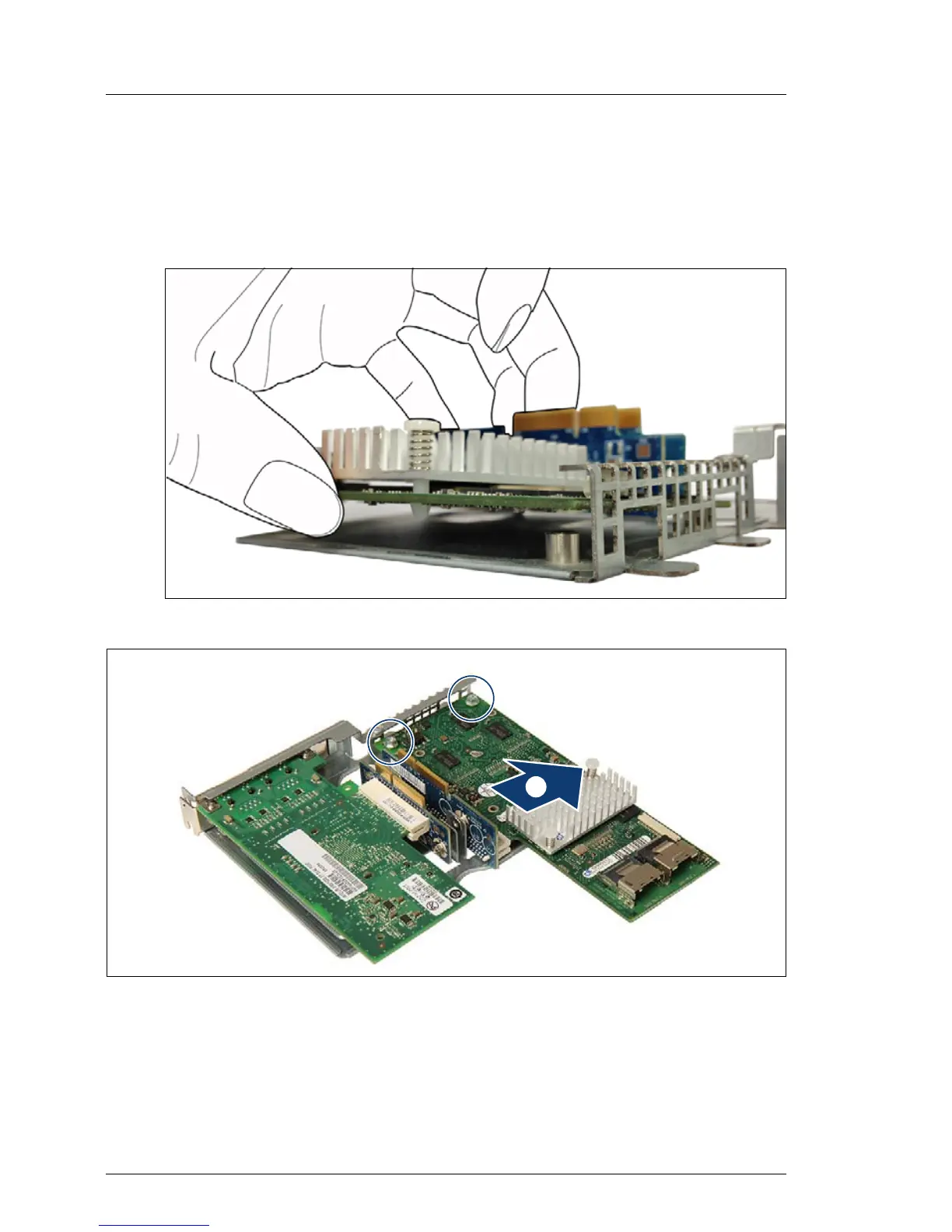

Figure 128: Lifting up the expansion card
Figure 129: Removing the expansion card - slot 1
Ê Remove the two screws (1).
Ê Pull out the expansion card from the riser card slot (2).
/
