236 Upgrade and Maintenance Manual
RX100 S7
Expansion cards and backup units

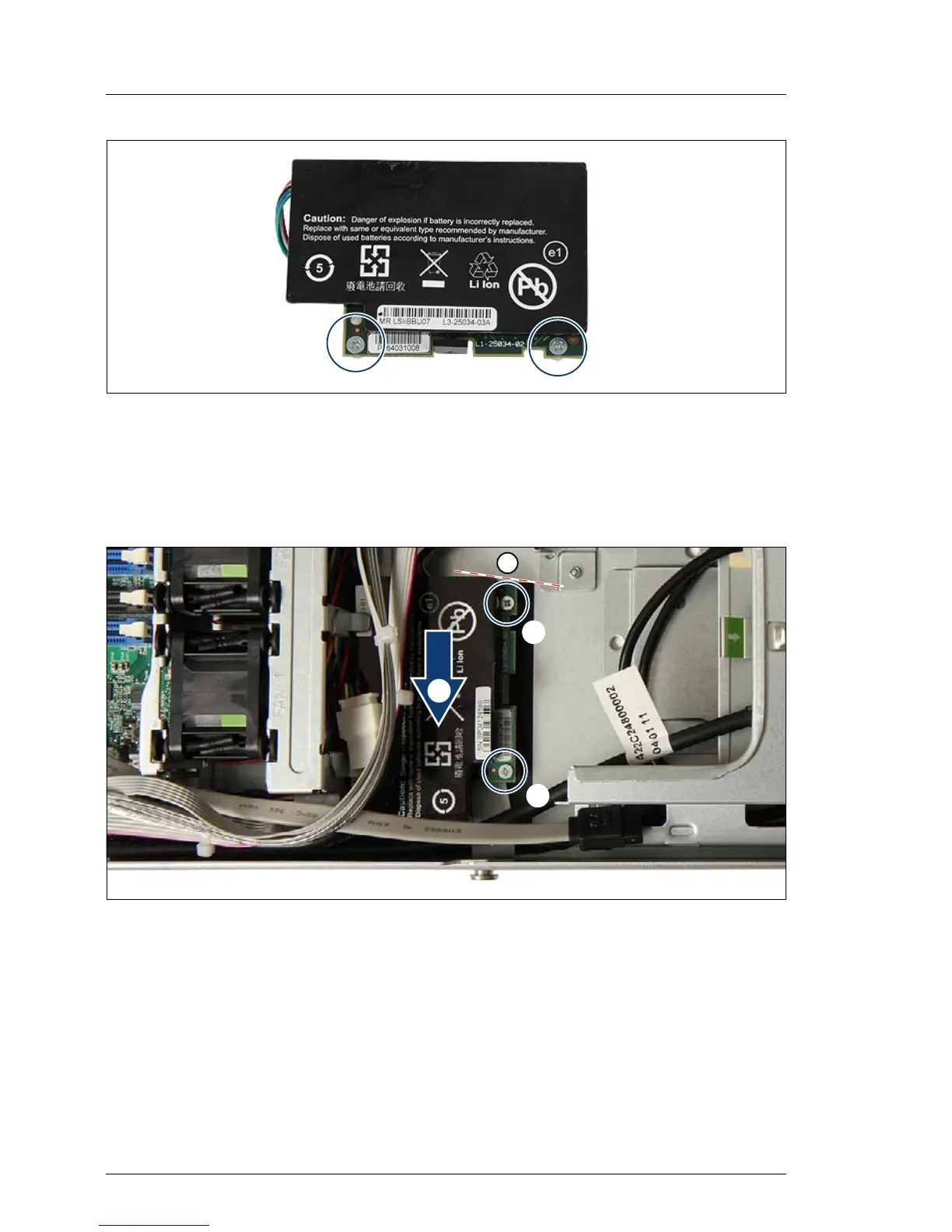

Figure 143: Removing two bolts from the BBU
Ê Loosen the two screws and remove the two bolts from the BBU.
Ê Connect the BBU cable to the BBU as described in section "Connecting the
BBU cable to the BBU" on page 237.
Figure 144: Fastening the BBU to the housing
Ê Position the BBU on the two bolts in the housing (1) with aligning the edges
of the foil (A) and the BBU.
Ê Fasten the BBU to the bolts using two screws (2).
