Acceleration Idler Latch Inspection
To inspect the Acceleration Idler latch follow the below procedure:
1. Open the Front door.
2. Undock Advanced Punch Pro.
3. When the Acceleration panel latch is fully engaged, the tabs in the
Idler panel should contact the drive panel. Inspect this for the latches
in the front side and rear side.
4. Do REP 3.1.1 Punch Module Removal to remove the Punch Module.

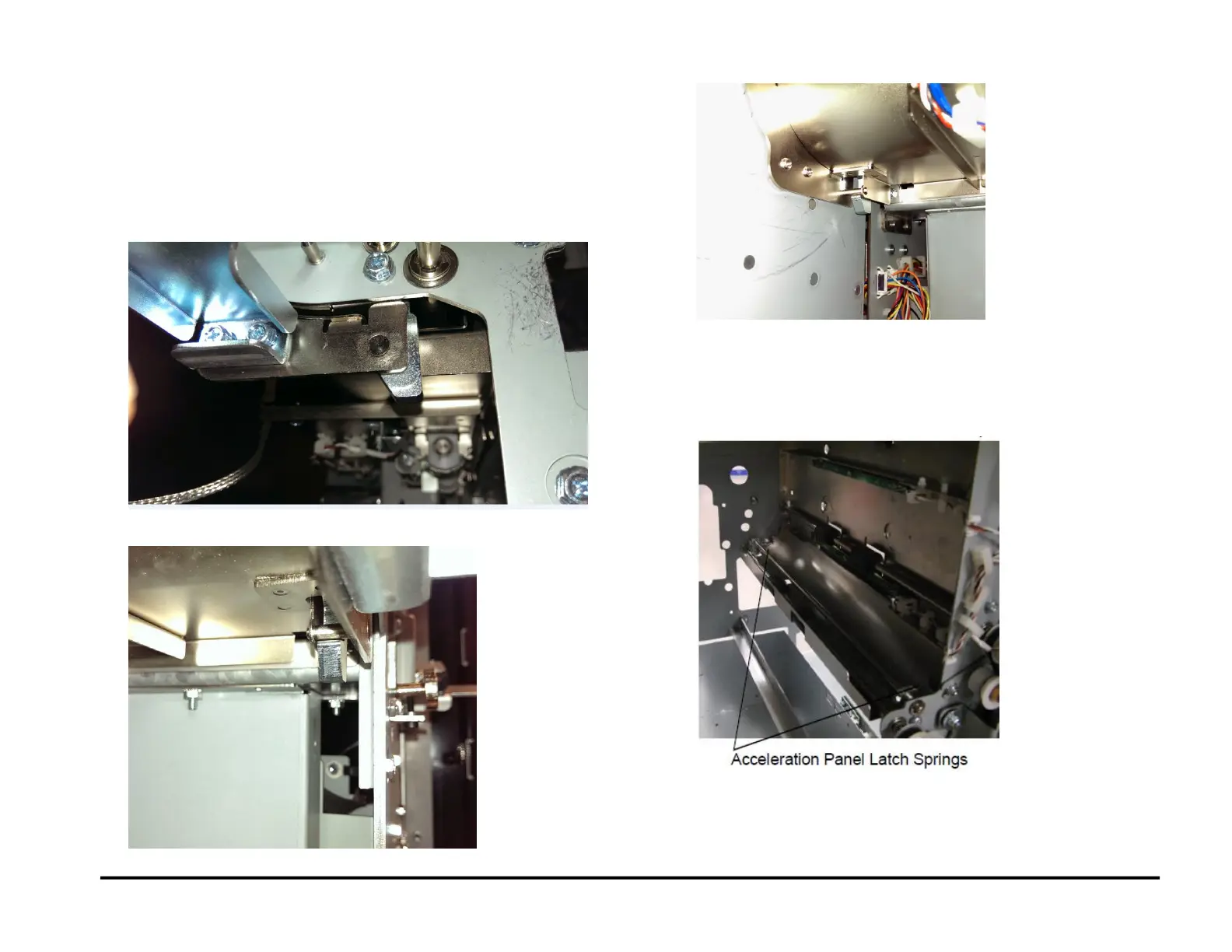

5. Inspect the Acceleration Idler Panel latch assembly (front and rear
side). There should be two springs between the latch mechanism and
the Entrance Drive panel.
6. If the Springs are damaged, do REP 2.17 Accel Idler Panel Rear
Latch Assembly Replacement or REP 2.17 Accel Idler Panel Front
Latch Assembly Replacement.
