Remote command:
CALCulate:FMODel:DELT<Ph_pt>:PORDer
Frequencies
Delta-L computes the uncertainty in the loss-per-inch calculation at specified frequen-
cies.
The "Frequencies" table is pre-populated with the frequencies recommended by Intel.

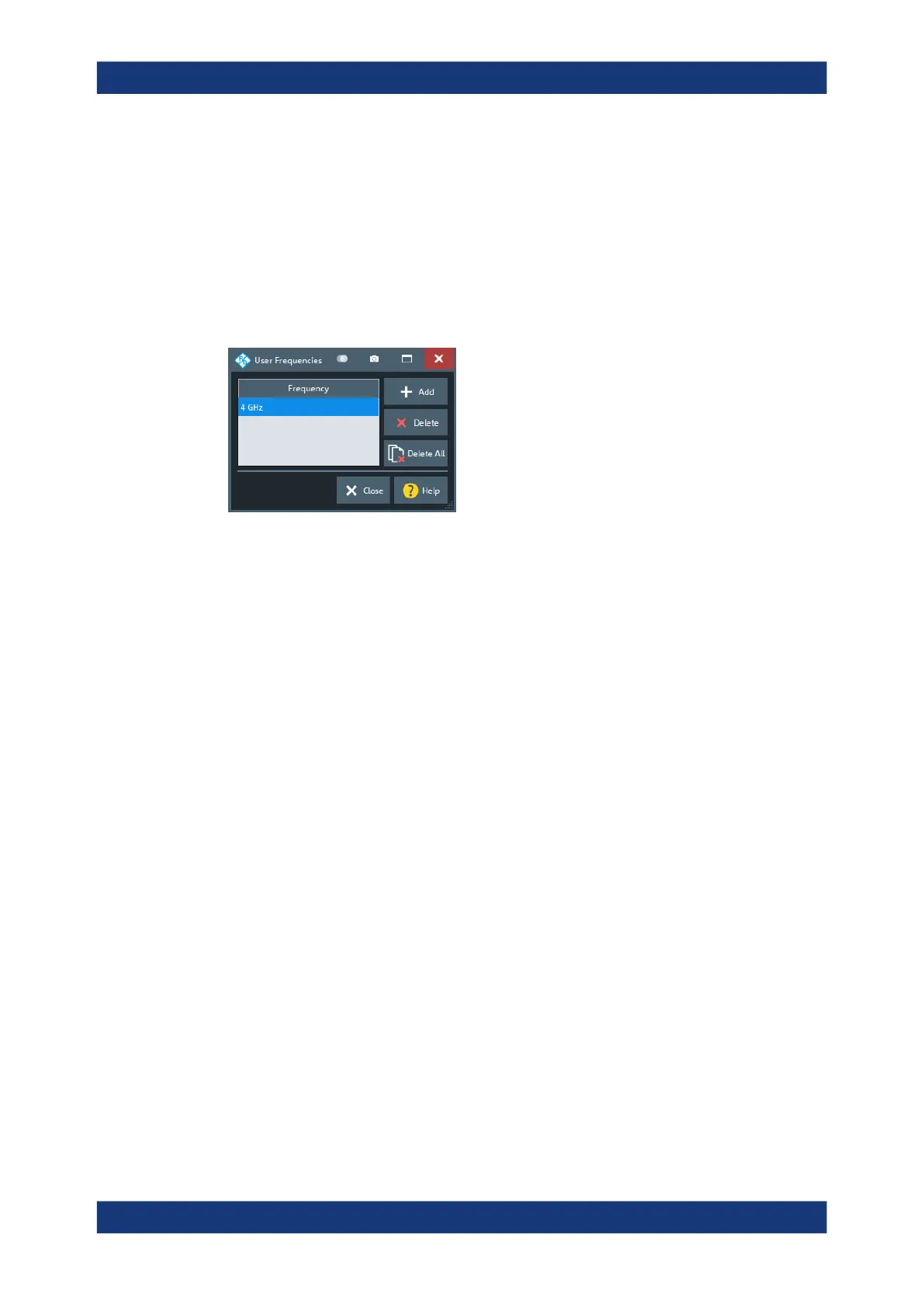

If you want to enter your own values, uncheck "Use Default Frequencies" and select
"Edit User Frequencies..." to bring up the "User Frequencies" dialog.
Remote command:
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:USEDefault
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:CURRent?
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:CURRent:COUNt?
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:DEFault?
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:DEFault:COUNt?
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:USER?
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:USER:COUNt?
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:USER:ADD
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:USER:DELete
CALCulate:FMODel:DELT<Ph_pt>:FREQuencies:USER:DELete:ALL
Sweep Control
The Delta-L measurement channel can either "Use Defaults" (10 MHz step size and
1 kHz IF bandwidth), or the "Current Sweep" settings (see "Freq Step Size"
on page 392, and "Bandwidth" on page 388).
Remote command:
CALCulate:FMODel:DELT<Ph_pt>:SWEep:CONTrol
CALCulate:FMODel:DELT<Ph_pt>:SWEep:CONTrol:STEP?
CALCulate:FMODel:DELT<Ph_pt>:SWEep:CONTrol:IFBW?
Sweep Frequency
Defines the sweep range of the Delta-L channel. The entered "Minimum" and "Maxi-
mum" values are set as start and stop frequency when the Delta-L settings are applied
using "OK". Furthermore, the VNA collects data for the LPI computation a the "Mini-
mum" and "Maximum" frequencies (in addition to the other specified "Frequencies"
on page 614).
