Follow these steps to back up the contents of the ECal module's built-in
flash memory.
1. Connect the USB cable between the USB port of the ECal module and
that of the E5071C. You can make this connection while the
E5071C's power is ON.
2. Start the VBA macro according to Starting the VBA MACRO

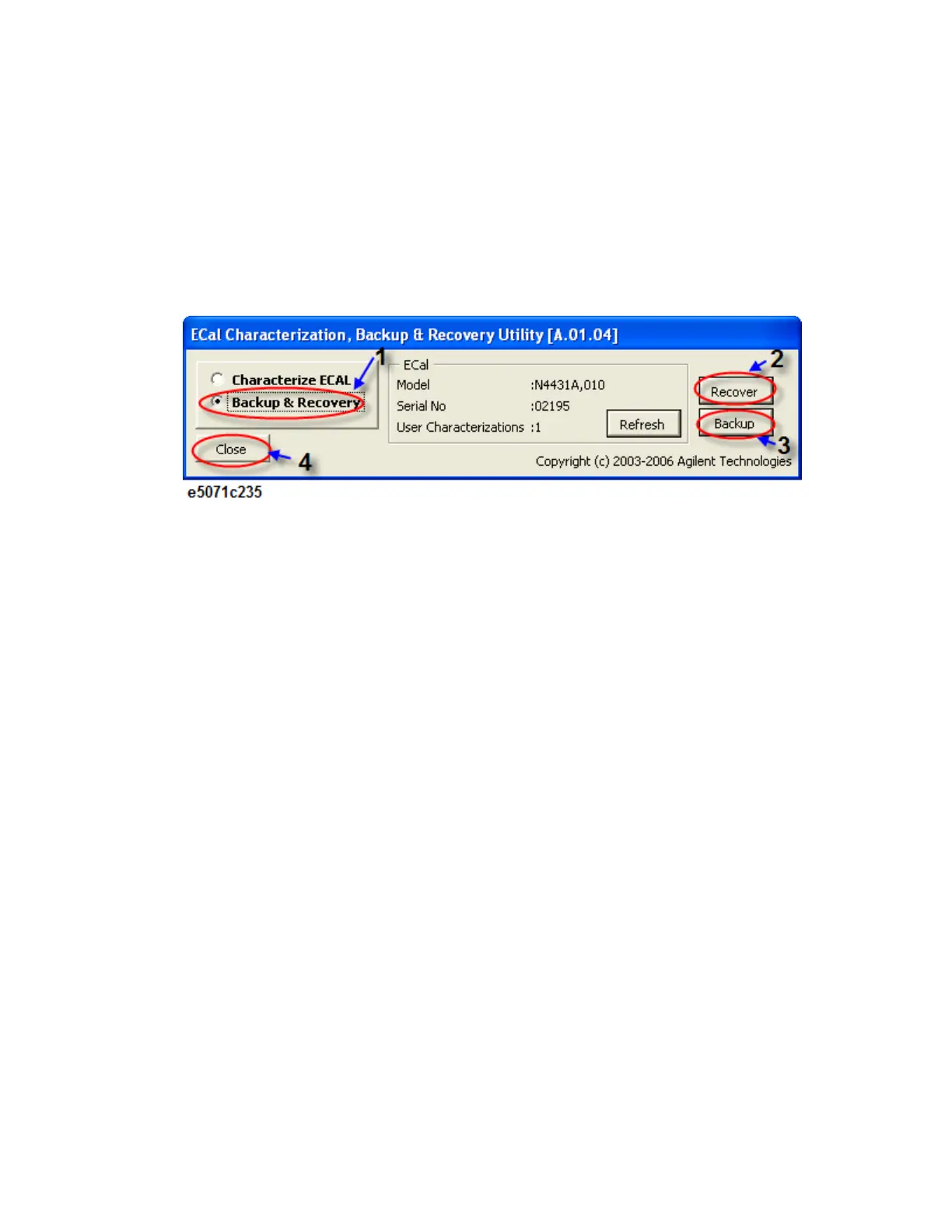

3. Select Backup Flash ROM (No. 1 in the following figure) to display the
Backup screen.
Recovery
1. Click Recover (No. 2 in the figure above.).
2. The Open dialog box appears. Enter the file name of the contents
you want to recover and Click Open. If the serial number information
stored in the file does not match that of the ECal module connected
to the E5071C, a confirmation dialog box appears. Click OK to
continue the recovery only if a mismatch between these serial
numbers is allowed.
3. The dialog box is displayed to confirm execution. Click OK to start
the recovery of the flash memory. The dialog box appears while the
VBA macro is storing data to the memory. The recovery of the flash
memory takes a few minutes depending on the amount of data.
4. The Completion screen appears. Click OK.
Backup
1. Click backup.
2. The Save As dialog box appears. Enter the name of the file you want
to save and press Save.
3. Click Close to close the macro.
Executing User-characterized ECal
