Measurement
173

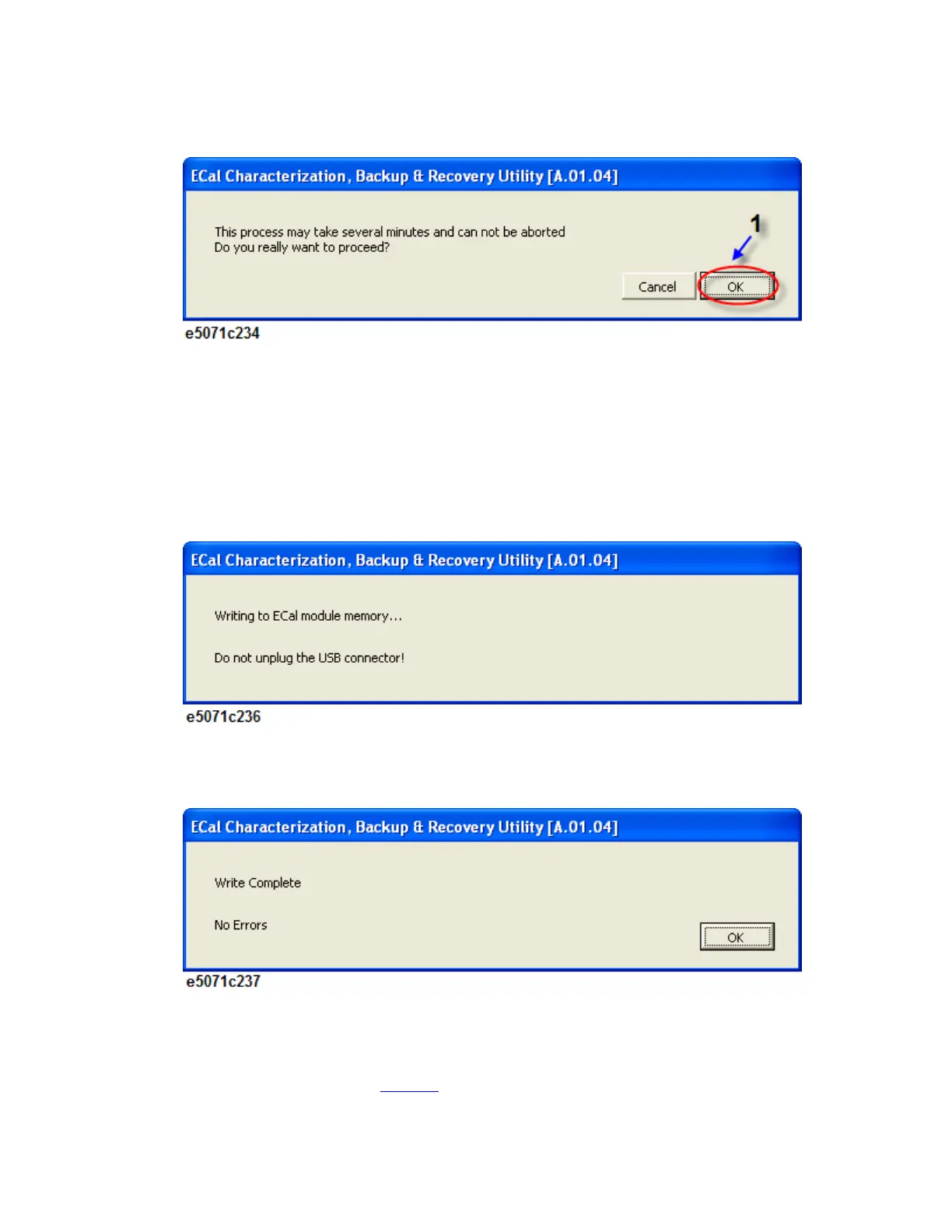

f. The following dialog box is displayed to confirm execution. Click OK
to start storing the user characteristics.
a. Do not disconnect the USB cable or terminate the VBA
macro by force while the VBA macro is storing data to the
ECal's built-in flash memory. Doing so may damage the
ECal module.
g. The following dialog box appears while the VBA macro is storing data
to memory. Storing the user characteristics takes a few minutes
depending on the amount of data.
h. Another dialog box is displayed to notify completion of data storage.
Click OK.
8. Closing the VBA macro
a. Click Close (No. 5 in Figure) to close the macro.
Backup and recovery of ECal module's built-in flash memory
