E5071C
2886

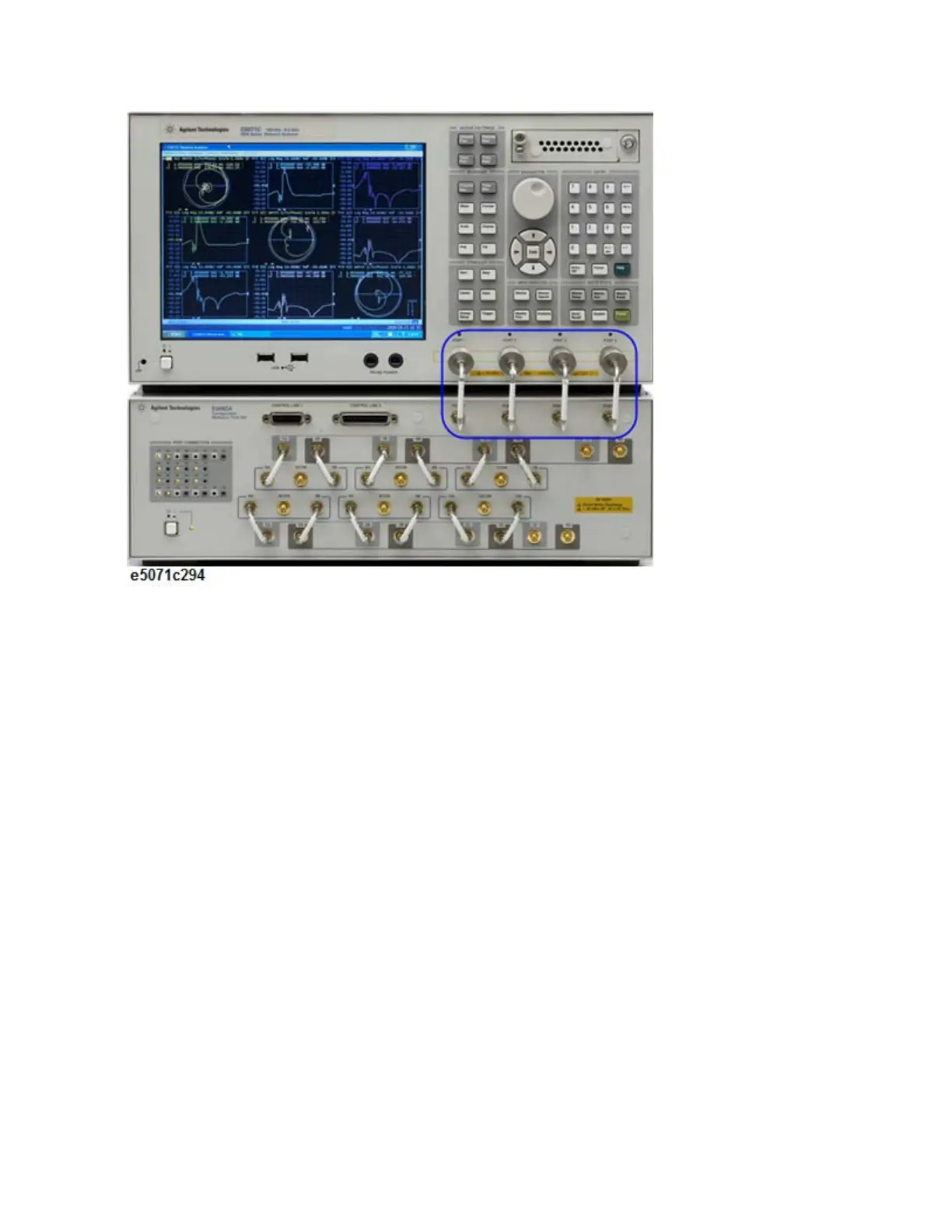

Connecting E5071C (Option 4D5/4K5) and E5092A
Required Devices
The devices required to connect the E5071C (option 4D5/4K5) to the
E5092A configurable multiport test set are listed below:
• E5071C (option 4K5)
• E5092A (option 020)
• 3.5mm (female) to 3.5mm (female) coaxial adapter (included in the
E5092A-20C for connection with the E5071C, Agilent part number:
85027-60005)
• Semi-rigid cable (included in the E5092A-20C for connection with the
E5071C, Agilent part number: E5092-61653)
• USB cable (supplied with the E5092A, Agilent part number: 8121-
1695)
• For the rackmount usage, it is recommended to use semi-rigid
cable (Agilent part number: E5092-61655, included in the
E5092A-20C) for connection with the E5071C.
USB Cable Connections and Driver Installation
RF Cable Connection
To Next Page
