Agilent Technologies E5071C

Controlling Multiport Test Set
2897
Setting the Multiport Test Set
This section describes the settings of the multiport test set. The following
table shows the flow used for item setting:
Setting flow for multiport test set
Item Description
Selecting ID for Multiport Test
Set
Selects the ID of the multiport test
set you want to set
Selecting the Configuration of
the Multiport Test Set
Selects the configuration of the
multiport test set you want to set
Assigning Test Ports
Assigns test ports of the E5071C and
those of the multiport test set
Displaying the Properties
Displays the multiport test set
property to check the port setting
Setting Control Line
Makes the setting of the control line
that controls the DUT
Other topics about Controlling Multiport Test Set
Selecting ID for Multiport Test Set
Operational Procedure
1. Set the target ID to the ID of the connected multiport test set.
2. Press System key > Multiport Test Set Setup to display the multiport
test set setup menu.
3. Select Test Set 1 for ID 1 and Test Set 2 for ID 2. The ID is set with
the bit switch on the rear panel of the multiport test set.

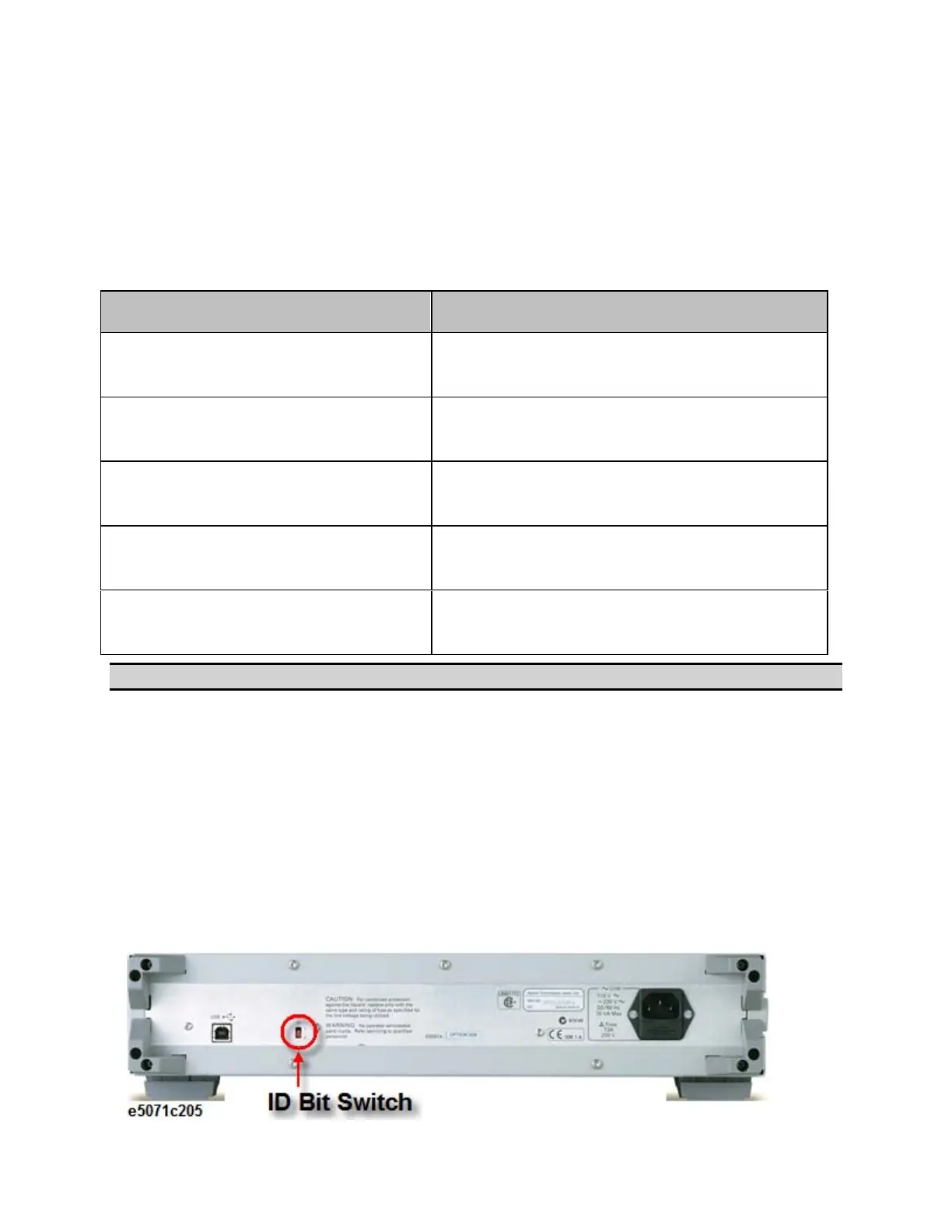

ID Bit Switch of E5091A
