Obtaining Characteristics After Embedding/De-embedding 4/6/8-
port Network
• Overview
• Procedure
Other topics about Fixture Simulator
Overview
The 4/6/8-port network embedding/de-embedding feature allows you to
add (embed) or remove (de-embed) data of your desired 4/6/8-port
network defined in a 4/6/8-port Touchstone data file to or from
measurement values through software-based processing. The
embedding/de-embedding supports three types of connection as shown
below.

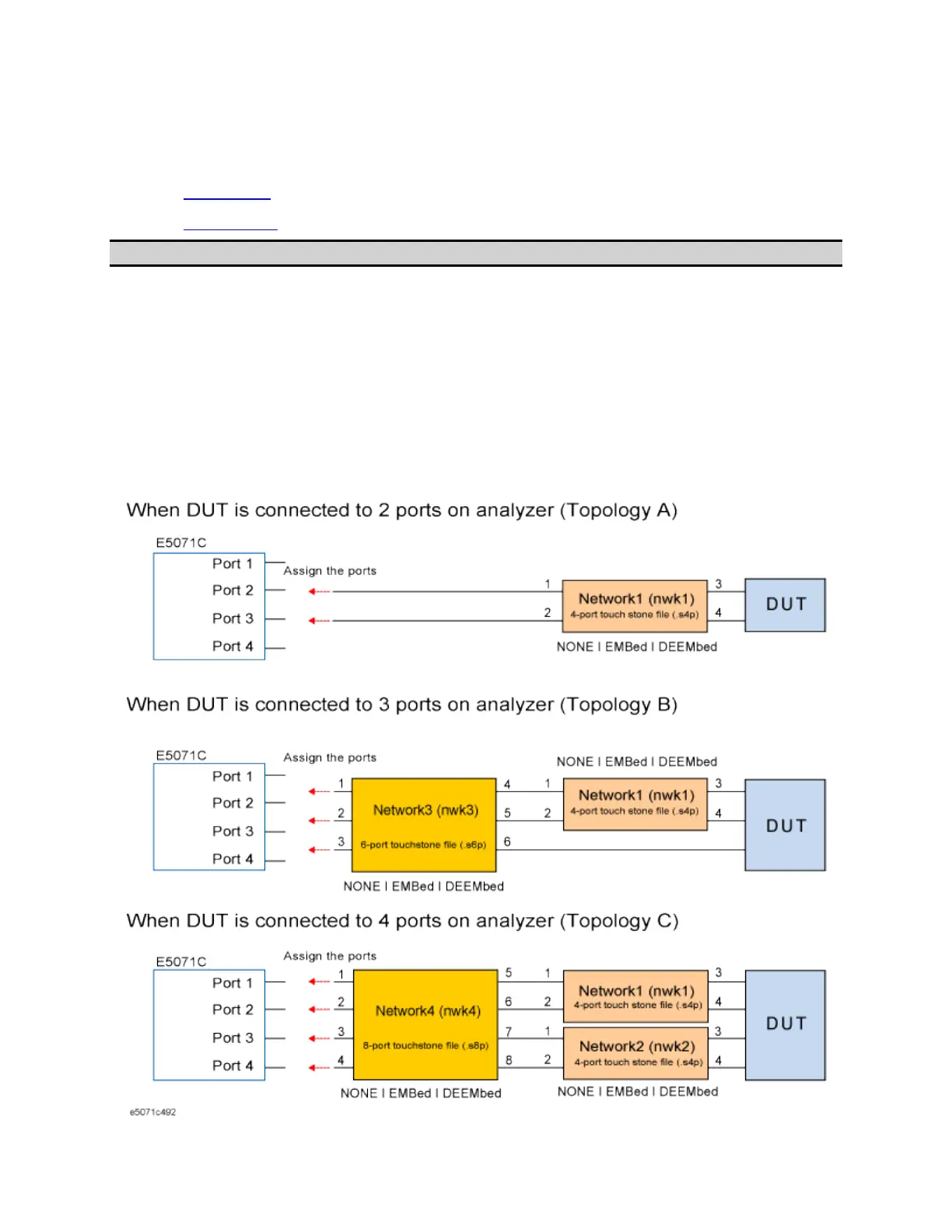

Connection that enables embedding/de-embedding network
(4/6/8-port touchstone data)
