6 FUNCTIONS OF THE OPERATION SCREENS CCW-R-2**B INSTRUCTION MANUAL
6-48
6.8 [Drain] Screen
To display the [Drain] screen, press the [Drain] key on the [Main Menu] screen.

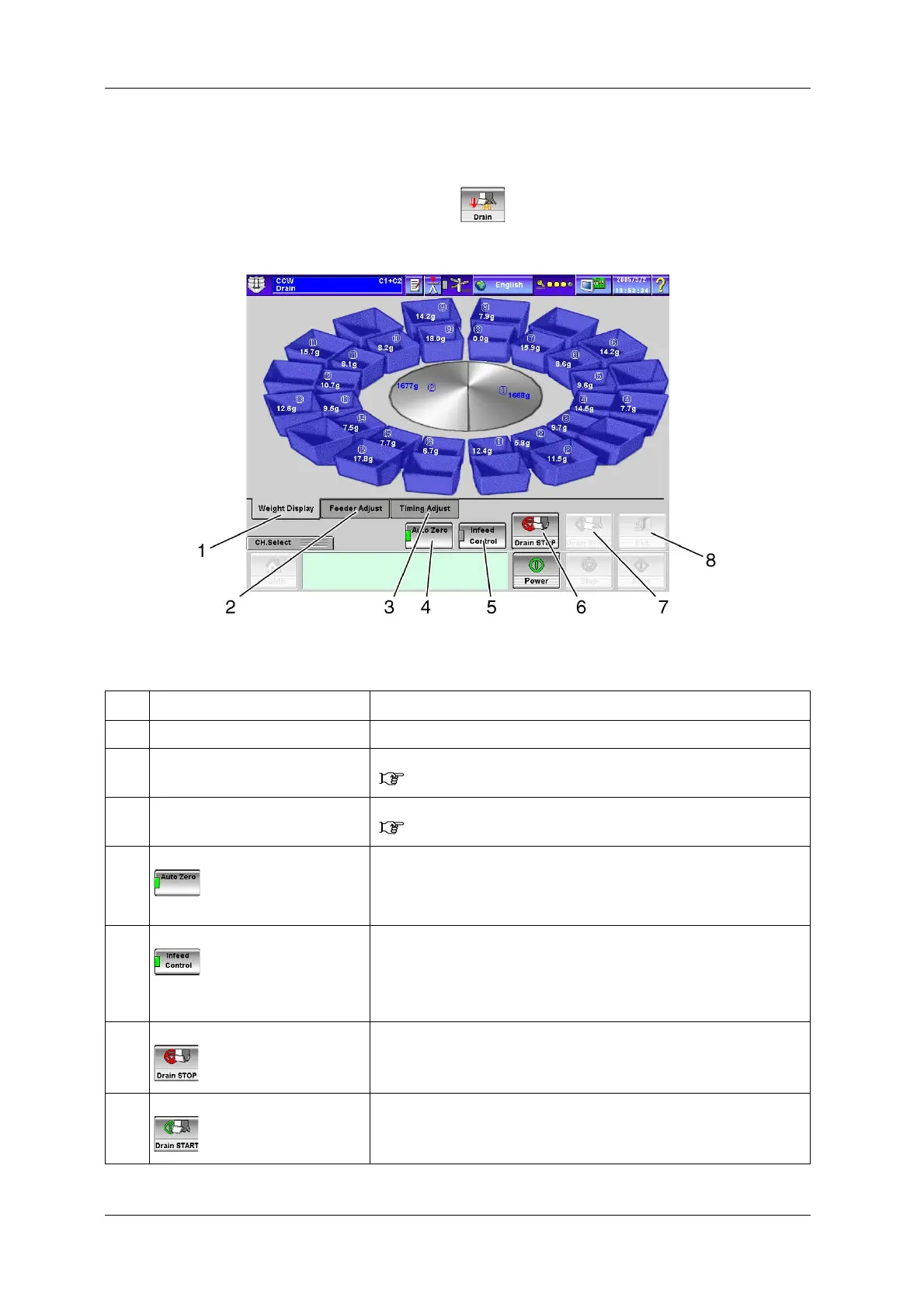

Fig.6-54 [Drain] screen
Table 6-16 Items and Functions of [Drain] Screen
No. Name Function
1 [Weight Display] tab Displays the [Weight Display] tab screen.
2 [Feeder Adjust] tab Displays the [Feeder Adjust] tab screen.
( 6.13 [Feeder Adjustment] Screen)
3 [Timing Adjust] tab Displays the [Timing Adjust] tab screen.
( 6.14 [Timing Adjustment] Screen)
4 [Auto Zero] lamp key Selects whether or not to perform auto zero adjustment.
Each time the key is pressed, the lamp turns on and off in turn.
ON: Auto zero adjustment is performed.
OFF: Auto zero adjustment is not performed.
5 [Infeed Control] lamp key Selects whether to stop or to automatically control product infeed to the
device.
Each time the key is pressed, the lamp turns on and off in turn.
ON: Automatic product infeed to the device is performed.
OFF: Automatic product infeed to the device is stopped.
6 [Drain STOP] key Stops drain temporarily.
7 [Drain START] key Starts drain.
