3.3.2.2 Inputting Alphanumeric Characters and Symbols

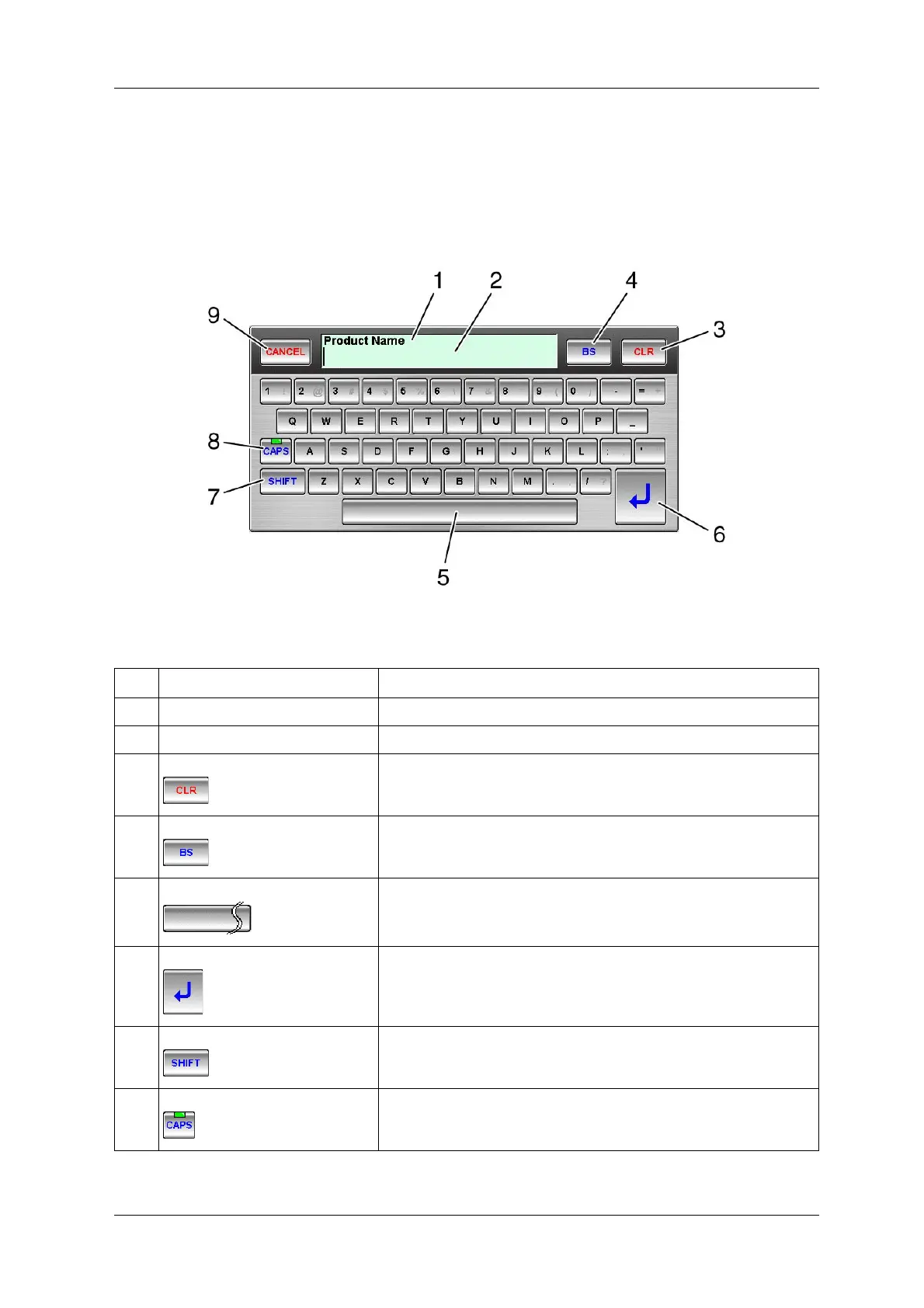

When the alphanumeric characters and symbols are input, the [Keyboard] screen will be displayed.
<Keyboard>
Fig.3-7 [Keyboard] Screen
Table 3-7 Descriptions of [Keyboard] Screen Functions
No. Name Function
1 Set item display area Displays the current set item.
2 Input display area Displays the input alphanumeric characters and symbols.
3 [CLR] key Deletes the displayed alphanumeric characters and symbols all at once.
4 [BS] key Deletes a single displayed alphanumeric character or symbol.
5 [Space] key Inputs a single blank character.
6 [Return] key Confirms the input alphanumeric characters and symbols and returns to the
original screen.
7 [SHIFT] key Switches two letters on the same key.
Alphanumeric characters and symbols that can be input are displayed in black.
8 [CAPS] key Switches the uppercase and lowercase.
When the [CAPS] key lamp is on, uppercase characters can be input.
