6 FUNCTIONS OF THE OPERATION SCREENS CCW-R-2**B INSTRUCTION MANUAL
6-124
6.15.2.2 [In/Output Signal] Tab Screen
Checks input and output contact signals.

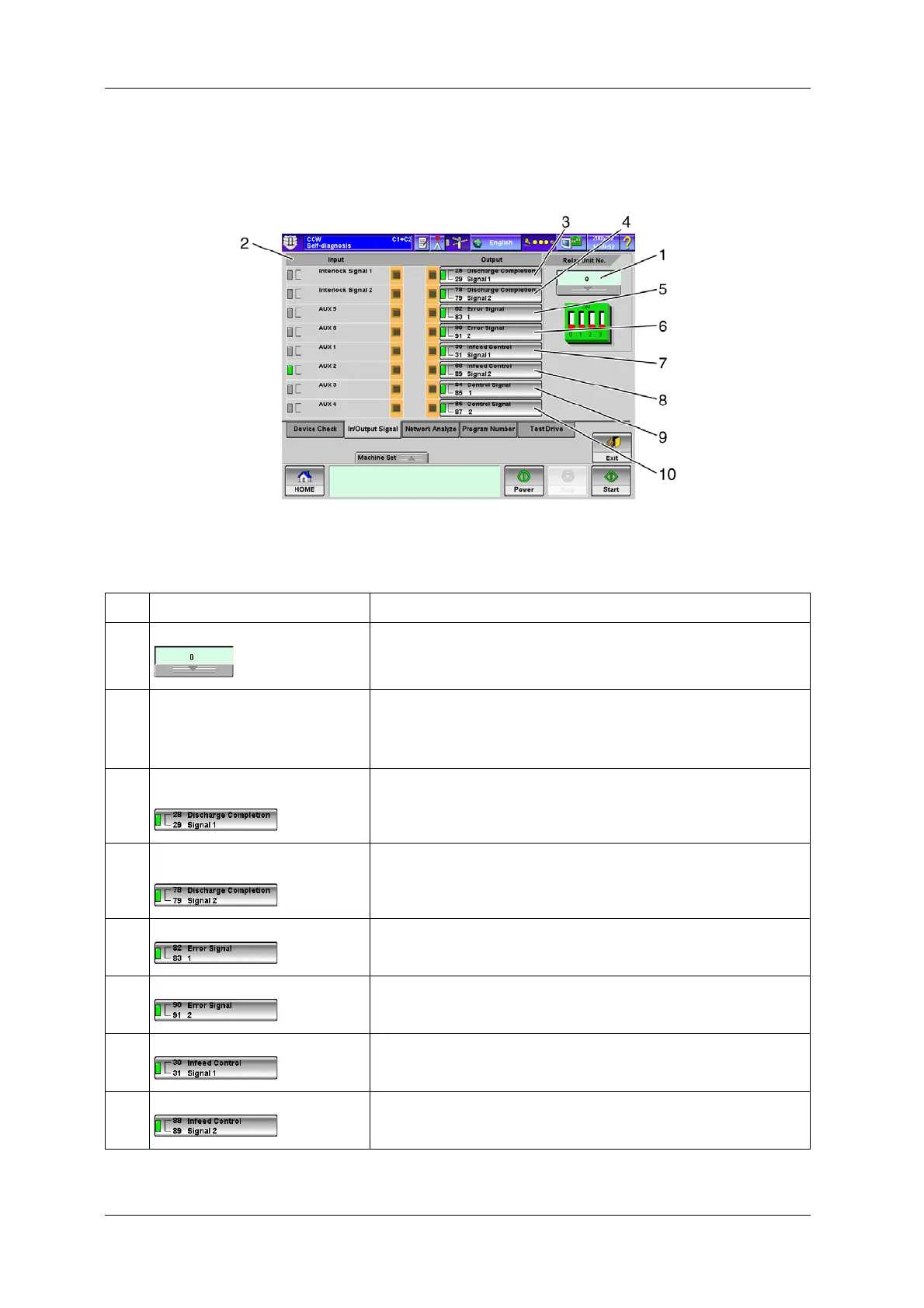

Fig.6-126 [In/Output Signal] Tab Screen ([Self-diagnosis] Screen)
Table 6-59 Items and Functions of the [In/Output Signal] Tab Screen
No. Name Function
1 [Relay Unit No.] key Selects the relay unit number.
If a relay unit is selected, the position of the dip switch on the screen changes.
The relay unit numbers that can be set are 0-15.
2 Input/output signal display Displays the relay unit selected in the previous item.
On the output side, the output name and the output signal to be tested are
selected with the lamp key and the test result is displayed with the lamp.
On the input side, the input name and lamp are displayed.
3 [Discharge Completion Signal 1]
lamp key
Selects ON/OFF of Discharge Completion Signal 1.
4 [Discharge Completion Signal 2]
lamp key
Selects ON/OFF of Discharge Completion Signal 2.
5 [Error Signal 1] lamp key Selects ON/OFF of Error Signal 1.
6 [Error Signal 2] lamp key Selects ON/OFF of Error Signal 2.
7 [Infeed Control Signal 1] lamp key Selects ON/OFF of Infeed Control Signal 1.
8 [Infeed Control Signal 2] lamp key Selects ON/OFF of Infeed Control Signal 2.
