CCW-R-2**B INSTRUCTION MANUAL 12 INSTALLATION
12-13

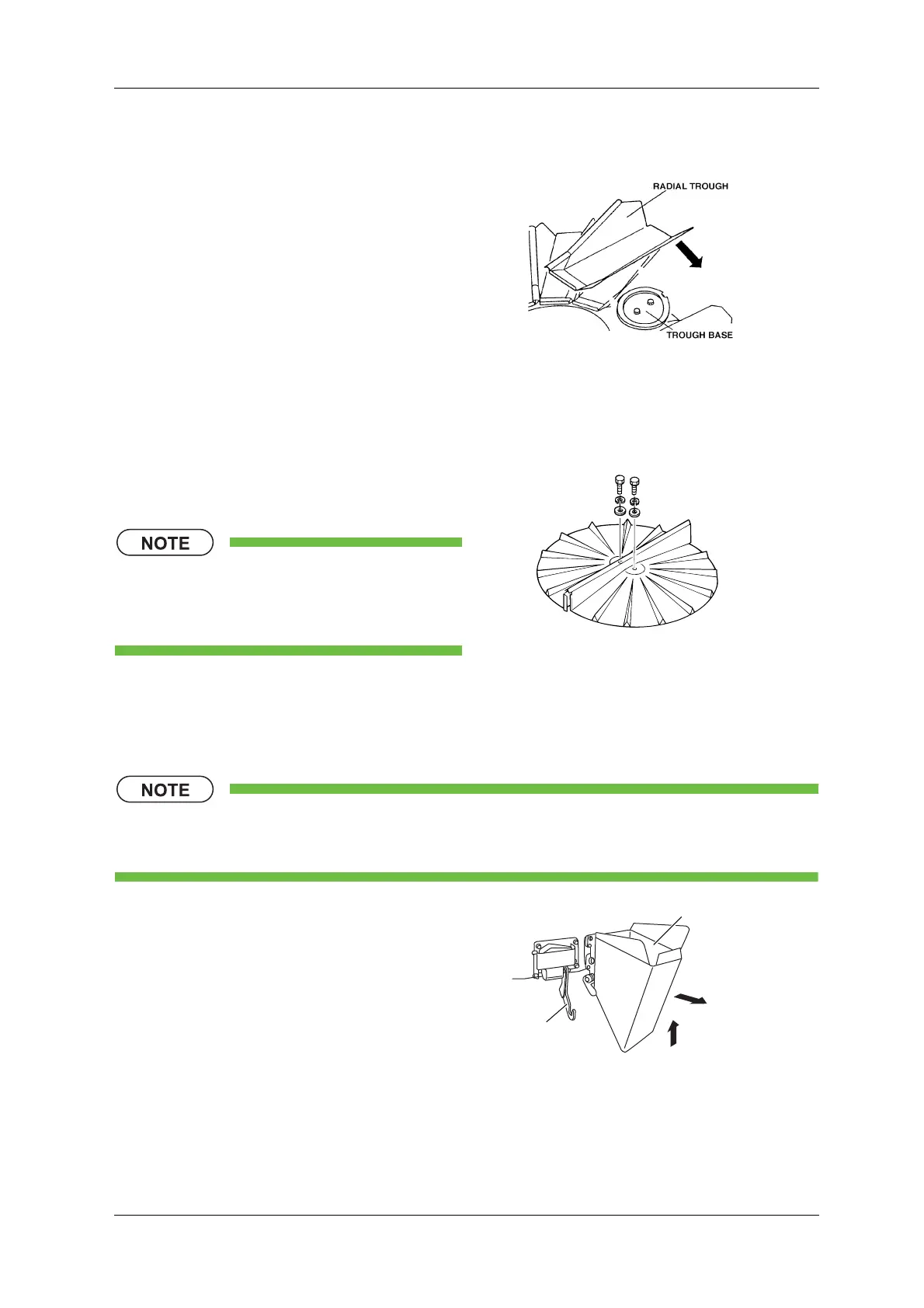

12.4.10 Installing Radial Trough
12.4.11 Installing Dispersion Table
12.4.12 Installing Booster Hopper
• The booster hoppers do not have matching numbers. The booster hoppers can be installed to
any of the heads.
1. Place the radial trough on the trough base.
2. Tighten the clamp lever to fix the radial trough.
Fig.12-8 Radial Trough
1. Attach the dispersion table, and tighten the four
pinches.
• When installing the dispersion table,
check that it does not make contact with
the trough.
Fig.12-9 Dispersion Table
1. Hang the hook of the booster hopper to the
booster hopper hanger of the weigh drive unit.
2. Make sure that the open/close roller of the
booster hopper fits into the switching lever.
Fig.12-10 Booster Hopper
BOOSTER HOPPER
OPEN/CLOSE
LEVER
