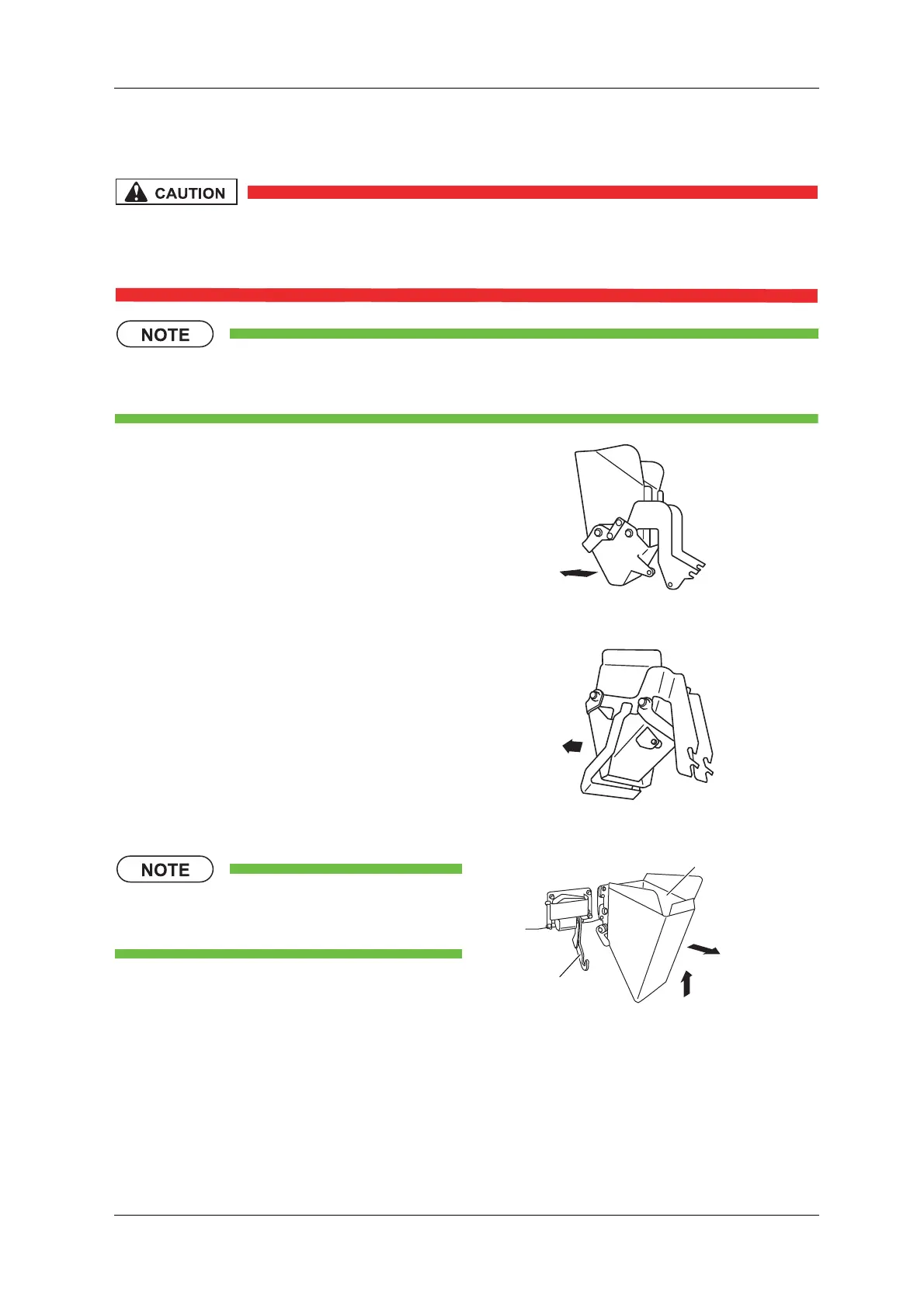

9.4.1.4 Pool Hopper, Weigh Hopper, and Booster Hopper
• When installing and removing the weigh hopper, do not apply an excessive
load.
Doing so may damage the weight sensor.
• When installing and removing the hoppers, securely support the side of the hoppers with both
hands.
1. Pull the pool hopper forward to remove.
Fig.9-9 Pool Hopper Removal
2. Pull the weigh hopper forward to remove.
Fig.9-10 Weigh Hopper Removal
• Remove the booster hopper before
removing the collection chute.
3. Hold the side of the booster hopper, and slightly
lift and pull the hopper to remove.
Fig.9-11 Booster Hopper Removal
BOOSTER HOPPER
OPEN/CLOSE
LEVER
