6.10 [Select Preset] Screen
The [Select Preset] screen is used to display and select the preset data registered in the memory.
6.10.1 Photo Display
To display the [Select Preset] screen, press the [Select Preset] key (display area of photos or other
images) on the [Main Menu] screen.

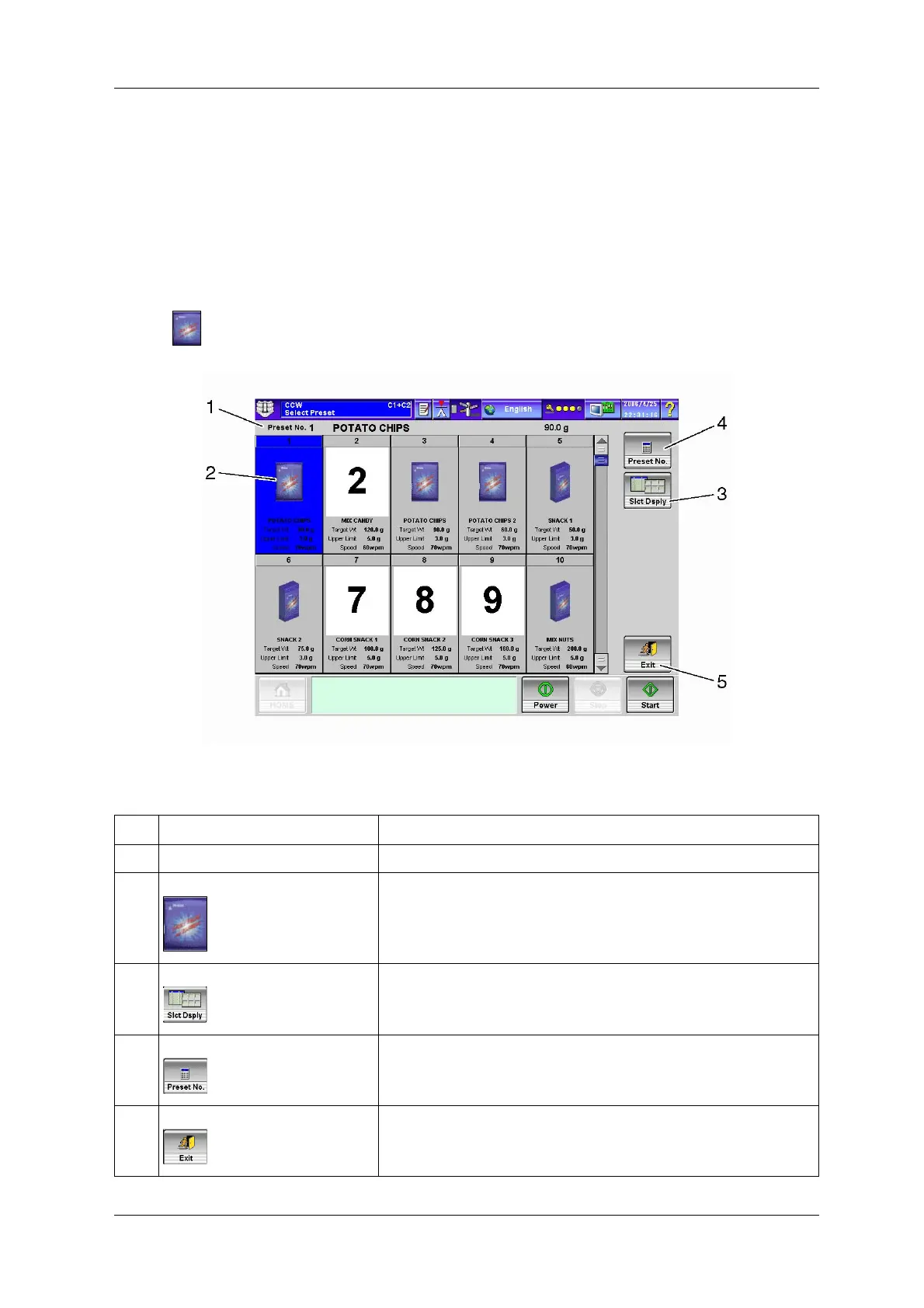

Fig.6-64 [Select Preset] Screen (Photo Mode)
Table 6-18 Items and Functions of [Select Preset] Screen
No. Name Function
1 [Preset No.] display Displays the selected preset number, product name and target weight.
2 [Select Preset] key Calls the preset.
The key displays the preset number, product name, target weight (or target
count), upper weight limit (or upper count limit) and speed.
It also displays a photo when it has photo data.
3 [Slct Dsply] key Switches the display mode to the list display.
4 [Preset No.] key Selects the preset number directly using the [Numeric Keypad] screen.
5 [Exit] key Returns to the [Main Menu] screen.
